FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
1.2 mm
Supply Voltage-Max:
45 V
Supply Voltage-Min:
4.4 V
Supply Voltage-Nom:
12 V
Supply Voltage1-Max:
45 V
Supply Voltage1-Min:
4.4 V
Supply Voltage1-Nom:
12 V
Surface Mount:
YES
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Turn-off Time:
0.2 µs
Turn-on Time:
0.2 µs
Width:
7 mm
DRV83053QPHPQ1 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the DRV83053QPHPQ1 evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The gate driver voltage should be selected based on the specific requirements of the power MOSFETs or IGBTs used in the application. A higher gate driver voltage can provide faster switching times, but may also increase power losses. The DRV83053QPHPQ1 supports a range of gate driver voltages from 5V to 15V, allowing for flexibility in design.
The maximum allowed dead-time between high-side and low-side switches depends on the specific application requirements and the power MOSFETs or IGBTs used. As a general guideline, the dead-time should be minimized to reduce power losses and improve efficiency. The DRV83053QPHPQ1 has a minimum dead-time of 100ns, but this can be adjusted through external resistors and capacitors.
The DRV83053QPHPQ1 has a built-in overcurrent protection feature that can be enabled through the OCP pin. The OCP threshold can be set through an external resistor and capacitor network. Additionally, the device also has a fault output pin that can be used to trigger an interrupt or shutdown the system in case of an overcurrent event.
The DRV83053QPHPQ1 is rated for operation from -40°C to 125°C, making it suitable for a wide range of industrial and automotive applications. However, the device's performance and reliability may be affected at extreme temperatures, and proper thermal management is recommended to ensure optimal operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DRV83053QPHPQ1 Overview

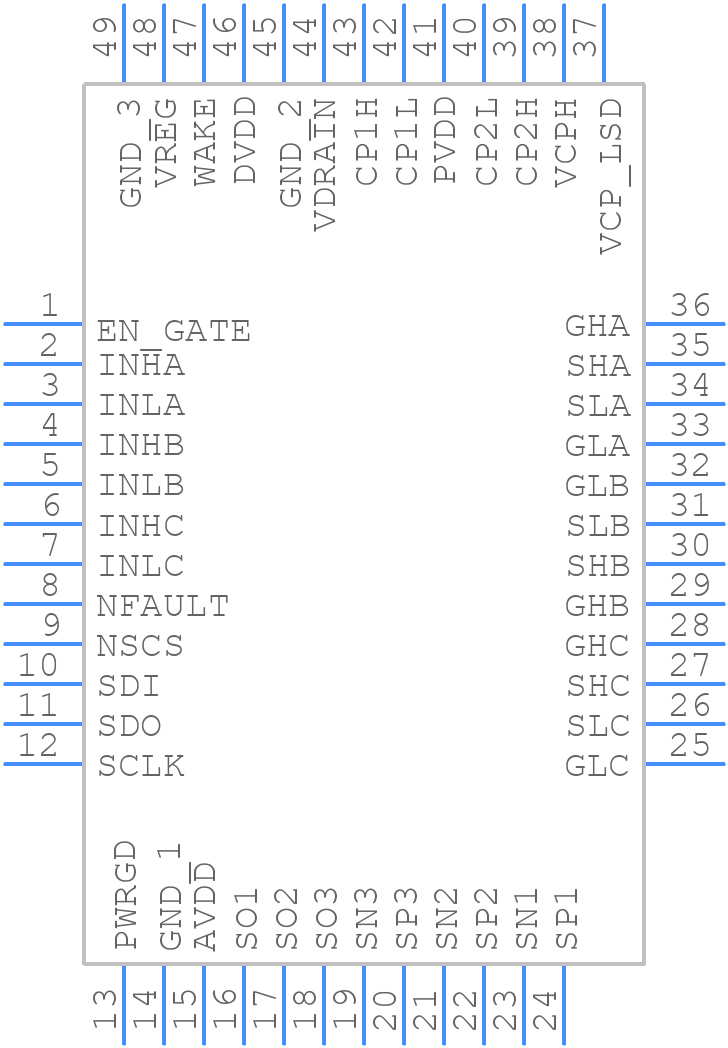

Use the download button to access the DRV83053QPHPQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV83,
or try a keyword search, such as MOSFET Drivers
