DRV83053PHPR - Texas Instruments

Description: Motor / Motion / Ignition Controllers & Drivers Three Phase Gate Driver with Three Integrated Current Shunt Amplifiers 48-HTQFP -40 to 125

Download DRV83053PHPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

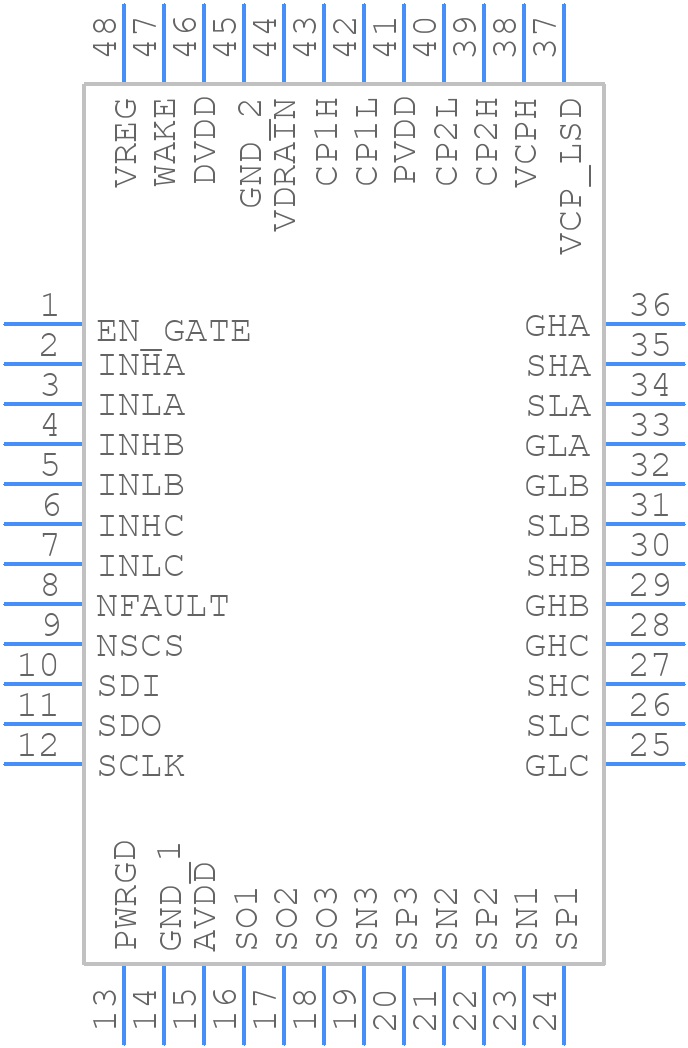

DRV83053PHPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV83053PHPR - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PHP (S-PQFP-G48)
click to zoom
3D Models
DRV83053PHPR - Texas Instruments - 3D model - Quad Flat Packages - PHP (S-PQFP-G48)
click to zoom

DRV83053PHPR Details

  • Manufacturer Part Number:

    DRV83053PHPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • High Side Driver:

    YES

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Peak Current Limit-Nom:

    1 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP48,.35SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    45 V

  • Supply Voltage-Min:

    4.4 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    45 V

  • Supply Voltage1-Min:

    4.4 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.2 µs

  • Turn-on Time:

    0.2 µs

  • Width:

    7 mm

DRV83053PHPR Frequently Asked Questions (FAQs)

  • A good PCB layout for the DRV83053PHPR involves keeping the high-current paths short and wide, using a solid ground plane, and placing the device close to the motor. TI provides a recommended layout in the datasheet and application notes.
  • The sense resistor value depends on the motor current and the desired current sense accuracy. A good starting point is to use the formula Rsense = 0.05 / Imax, where Imax is the maximum motor current. TI provides a sense resistor calculator tool to help with the selection.
  • The DRV83053PHPR has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure proper thermal management and heat sinking to maintain a safe operating temperature.
  • The DRV83053PHPR has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor divider network. The device will shut down if the current exceeds the programmed threshold. TI provides a detailed application note on implementing overcurrent protection.
  • A decoupling capacitor of 10uF to 22uF X7R or X5R type is recommended, placed as close as possible to the device's power pins. This helps to filter out noise and ensure stable operation.
