DRV83055PHPR - Texas Instruments

Description: Three Phase Gate Driver with Three Integrated Current Shunt Amplifiers

Download DRV83055PHPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

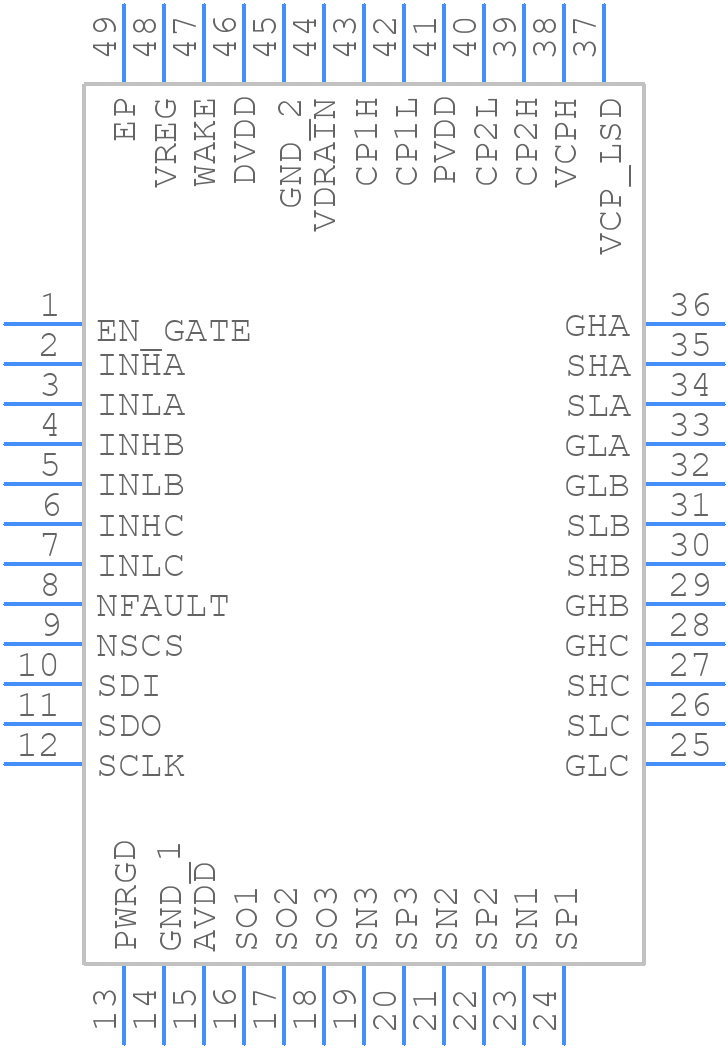

DRV83055PHPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV83055PHPR - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PHP (S-PQFP-G48)
click to zoom
3D Models
DRV83055PHPR - Texas Instruments - 3D model - Quad Flat Packages - PHP (S-PQFP-G48)
click to zoom

DRV83055PHPR Details

  • Manufacturer Part Number:

    DRV83055PHPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • High Side Driver:

    YES

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Peak Current Limit-Nom:

    1 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP48,.35SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    45 V

  • Supply Voltage-Min:

    4.4 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    45 V

  • Supply Voltage1-Min:

    4.4 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.2 µs

  • Turn-on Time:

    0.2 µs

  • Width:

    7 mm

DRV83055PHPR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the DRV83055PHPR evaluation module user's guide (SLVUAE4). It's essential to follow this layout to ensure proper thermal performance, noise reduction, and signal integrity.
  • The DRV83055PHPR is designed to work with a wide range of MOSFETs. To select the right MOSFETs, consider factors such as voltage rating, current rating, RDS(on), and gate charge. Texas Instruments provides a MOSFET selection guide (SLVA883) to help with this process.
  • The maximum allowed voltage on the VCC pin is 16.5V. Exceeding this voltage can damage the device. It's essential to ensure that the voltage regulator or power supply used to power the DRV83055PHPR does not exceed this voltage.
  • The OCP and OVP features can be configured using external resistors and capacitors. The DRV83055PHPR datasheet provides a detailed description of how to configure these features. Additionally, the DRV83055PHPR evaluation module user's guide (SLVUAE4) provides example configurations and calculations.
  • The nFAULT pin is an active-low fault indicator that signals when the device detects an overcurrent, overvoltage, or overtemperature condition. This pin can be connected to a microcontroller or other logic device to trigger a shutdown or alarm when a fault occurs.
