DRV8306HRSMR - Texas Instruments

Description: 38V Brushless-DC Smart Gate Driver With Trapezoidal Commutation

Download DRV8306HRSMR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

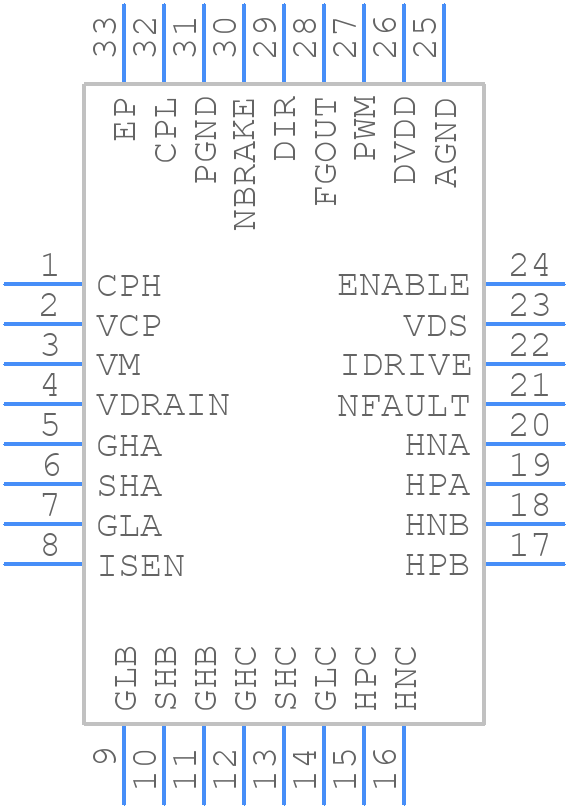

DRV8306HRSMR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8306HRSMR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - DRV8306HRSMR
click to zoom
3D Models
DRV8306HRSMR - Texas Instruments - 3D model - Quad Flat No-Lead - DRV8306HRSMR
click to zoom

DRV8306HRSMR Details

  • Manufacturer Part Number:

    DRV8306HRSMR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2018-05-08

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    1-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.15 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    38 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Supply Voltage-Nom (Vsup):

    8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

DRV8306HRSMR Frequently Asked Questions (FAQs)

  • The maximum voltage rating for the DRV8306HRSMR is 50V. However, the recommended operating voltage range is 10V to 40V.
  • The DRV8306HRSMR can be configured for 3-phase motor control by connecting the three half-bridge outputs (A, B, and C) to the motor windings. The device also requires a 3-phase modulation input signal to control the motor speed and direction.
  • The maximum current rating for the DRV8306HRSMR is 3A per phase. However, the actual current rating may be limited by the PCB design, thermal considerations, and other system-level factors.
  • The DRV8306HRSMR has built-in overcurrent protection (OCP) and overvoltage protection (OVP) features. Additionally, external protection circuits, such as fuses or TVS diodes, can be added to provide extra protection against overcurrent and overvoltage conditions.
  • The VREG pin is used to connect an external voltage regulator to generate a 5V or 3.3V supply voltage for the internal logic and gate drivers. This pin can also be used to monitor the internal voltage regulator output.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DRV8306HRSMR Overview

Use the download button to access the DRV8306HRSMR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV83, or try a keyword search, such as Motion Control Electronics

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
