DRV8311HRRWR - Texas Instruments

Description: 24-V abs max, 3 to 20-V, three-phase brushless-DC motor driver with integrated FETs

Download DRV8311HRRWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

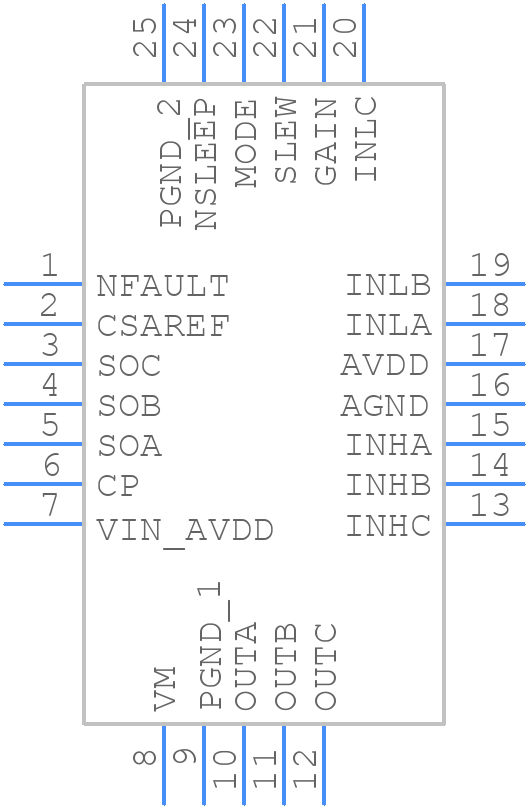

DRV8311HRRWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8311HRRWR - Texas Instruments PCB footprint - Other - Other - RRW0024A_2025
click to zoom
3D Models
DRV8311HRRWR - Texas Instruments - 3D model - Other - RRW0024A_2025
click to zoom

DRV8311HRRWR Details

  • Manufacturer Part Number:

    DRV8311HRRWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.12SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    15 mA

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

DRV8311HRRWR Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VM pin is 16V, but it's recommended to keep it below 15V to ensure reliable operation.
  • The OCP threshold can be configured by connecting a resistor (R_OCP) between the OCP pin and GND. The threshold current is inversely proportional to the resistance value. Refer to the datasheet for the calculation formula.
  • The EN pin is an active-high enable input that allows the device to be enabled or disabled. When EN is high, the device is enabled, and when EN is low, the device is disabled. This pin can be used to implement a shutdown or sleep mode in the system.
  • The value of CBOOT depends on the switching frequency, output current, and voltage. A general guideline is to choose a capacitor with a value between 10nF to 100nF. A larger capacitor value can provide better noise filtering, but may increase the startup time.
  • The recommended layout and placement for the DRV8311HRRWR involves keeping the high-current paths short and wide, and placing the device close to the motor and power supply. It's also important to separate the high-frequency and low-frequency components to minimize noise coupling.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DRV8311HRRWR Overview

Use the download button to access the DRV8311HRRWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV83, or try a keyword search, such as Motion Control Electronics

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
