DRV8313PWP - Texas Instruments

Description: 2.5A Three Phase Brushless DC Motor Driver (PWM Ctrl)

Download DRV8313PWP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

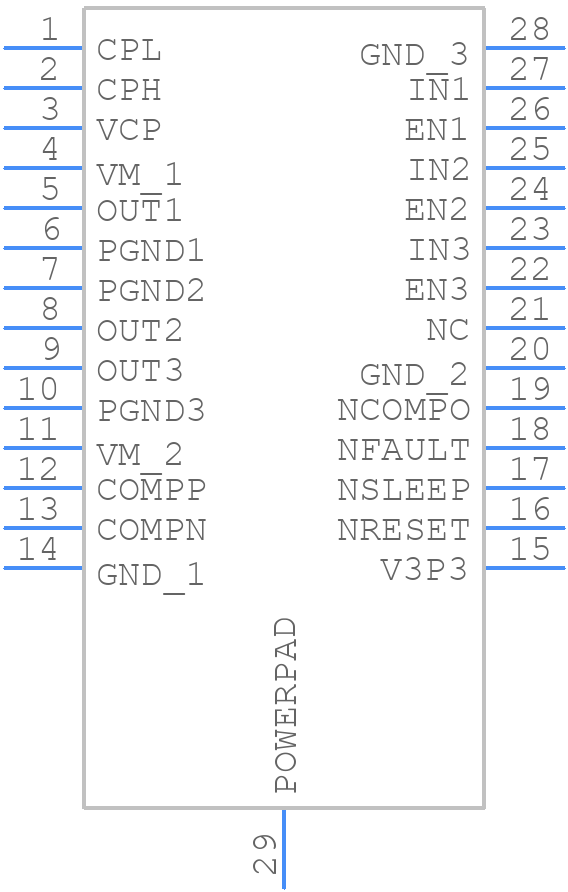

DRV8313PWP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8313PWP - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP (R-PDSO-G28)
click to zoom
3D Models
DRV8313PWP - Texas Instruments - 3D model - Small Outline Packages - PWP (R-PDSO-G28)
click to zoom

DRV8313PWP Details

  • Manufacturer Part Number:

    DRV8313PWP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    5 mA

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

DRV8313PWP Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VM pin is 50V, but it's recommended to keep it below 40V for reliable operation.
  • The sense resistor value depends on the motor current and the desired current sense accuracy. A general guideline is to choose a sense resistor value that results in a voltage drop of around 50-100mV at the maximum motor current.
  • The EN (enable) pin is used to enable or disable the driver. When EN is high, the driver is enabled, and when EN is low, the driver is disabled. You can use the EN pin to implement a shutdown or standby mode in your system.
  • The DRV8313PWP has built-in overcurrent protection, but you can also add external protection components such as fuses or PTC thermistors to provide additional protection. You should also ensure that the PCB layout and thermal design can handle the maximum current and power dissipation.
  • A good PCB layout and thermal design are critical for the DRV8313PWP. Ensure that the PCB has a solid ground plane, and the driver is placed near the motor terminals to minimize inductance. Use thermal vias and a heat sink to dissipate heat, and ensure that the driver is not exposed to excessive temperatures.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DRV8313PWP Overview

Use the download button to access the DRV8313PWP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV83, or try a keyword search, such as Motion Control Electronics

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
