The maximum voltage that can be applied to the VM pin is 50V, but it's recommended to keep it below 40V for reliable operation.
To configure the DRV8316 for 3-phase brushless DC motor control, connect the 3-phase motor windings to the OUTA, OUTB, and OUTC pins, and use the PHA, PHB, and PHC pins to sense the motor phase. Then, use the SPI interface to configure the device for 3-phase operation and set the desired motor control parameters.
The nSLEEP pin is an active-low sleep mode input that allows the device to enter a low-power sleep mode. To use it, connect the nSLEEP pin to a logic low signal when the device is not in use, and the device will enter sleep mode, reducing power consumption.
The DRV8316 has built-in overcurrent protection (OCP) that can be configured using the SPI interface. Set the OCP threshold and timeout values according to your application requirements, and the device will automatically shut down in case of an overcurrent event.
For optimal performance and thermal management, follow the recommended PCB layout guidelines in the datasheet, including using a 4-layer PCB with a solid ground plane, and placing the device near a heat sink or thermal pad. Ensure good airflow around the device and avoid thermal hotspots.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DRV8316CRQRGFRQ1 Overview

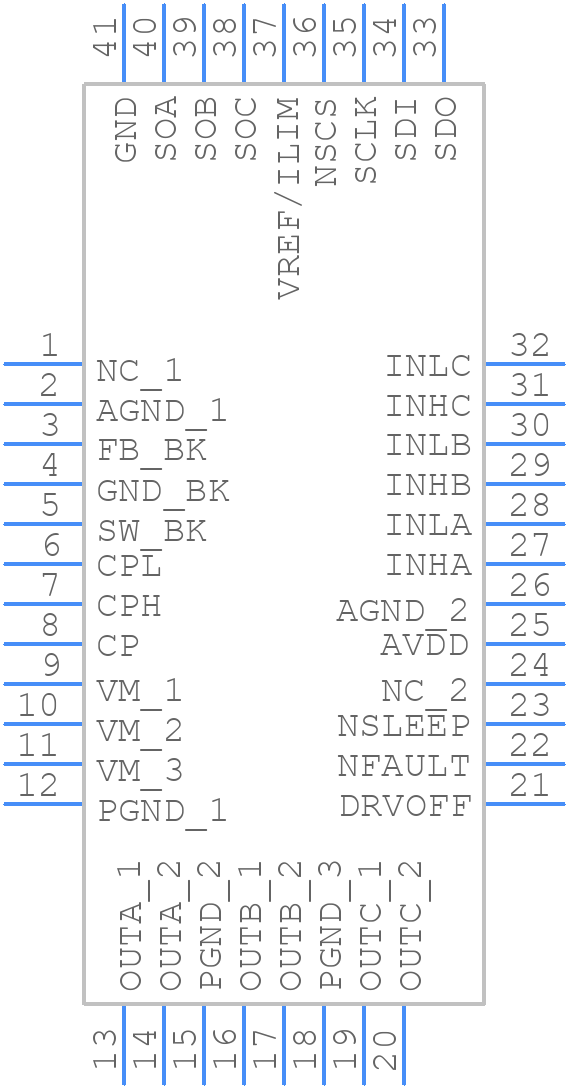

Use the download button to access the DRV8316CRQRGFRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV83,
or try a keyword search, such as Motion Control Electronics
