The maximum voltage that can be applied to the VM pin is 16V, but it's recommended to keep it below 15V to ensure reliable operation.
To configure the DRV8316CRRGFR for 3-phase brushless DC motor control, connect the 3-phase motor windings to the OUTA, OUTB, and OUTC pins, and use the PHA, PHB, and PHC pins to sense the motor phase. Then, use the SPI interface to configure the device for 3-phase operation and set the desired motor control parameters.
The nFAULT pin is an active-low fault indicator that signals when the device detects an overcurrent, overtemperature, or undervoltage condition. It can be used to trigger a system shutdown or alarm in case of a fault.
Yes, the DRV8316CRRGFR can operate with a 5V power supply, but the maximum output current will be limited to around 1A per phase. For higher output currents, a higher power supply voltage (up to 15V) is recommended.
The DRV8316CRRGFR has built-in overcurrent protection, which can be configured using the OCP pin. Connect a resistor from the OCP pin to ground to set the overcurrent threshold, and the device will limit the output current to prevent damage in case of an overcurrent condition.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DRV8316CRRGFR Overview

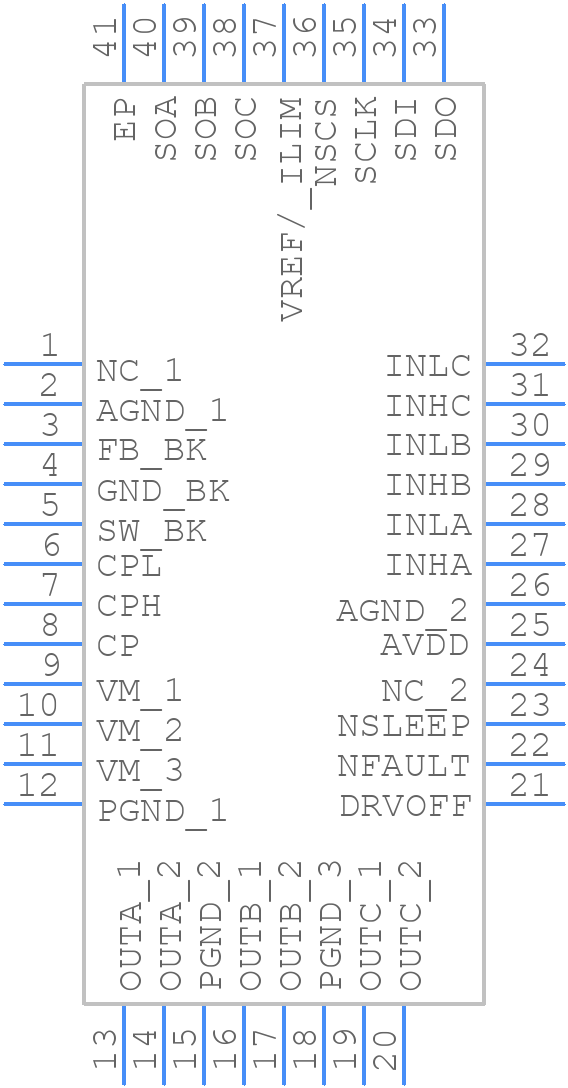

Use the download button to access the DRV8316CRRGFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV83,
or try a keyword search, such as Motion Control Electronics
