Description:Motor / Motion / Ignition Controllers & Drivers Automotive 40-V max 8-A peak three-phase motor driver with integrated current sensing 40-VQFN -40 to 125
The maximum operating temperature range for the DRV8316CTQRGFRQ1 is -40°C to 125°C.
The DRV8316CTQRGFRQ1 can be configured for 3-phase motor control by connecting the phase A, B, and C outputs to the motor windings, and using the internal PWM generators to generate the necessary commutation signals. The device also requires an external controller, such as a microcontroller, to provide the necessary control signals and feedback.
The maximum current rating for the DRV8316CTQRGFRQ1 is 3A per phase, with a total current rating of 6A for all three phases combined.
The DRV8316CTQRGFRQ1 has built-in overcurrent and overvoltage protection features, including overcurrent shutdown, undervoltage lockout, and overtemperature shutdown. Additionally, external protection components, such as fuses and TVS diodes, can be added to provide additional protection.
Yes, the DRV8316CTQRGFRQ1 can be used for brushless DC (BLDC) motor control. The device has a built-in 3-phase PWM generator and can be configured to operate in trapezoidal or sinusoidal commutation modes, making it suitable for BLDC motor control applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DRV8316CTQRGFRQ1 Overview

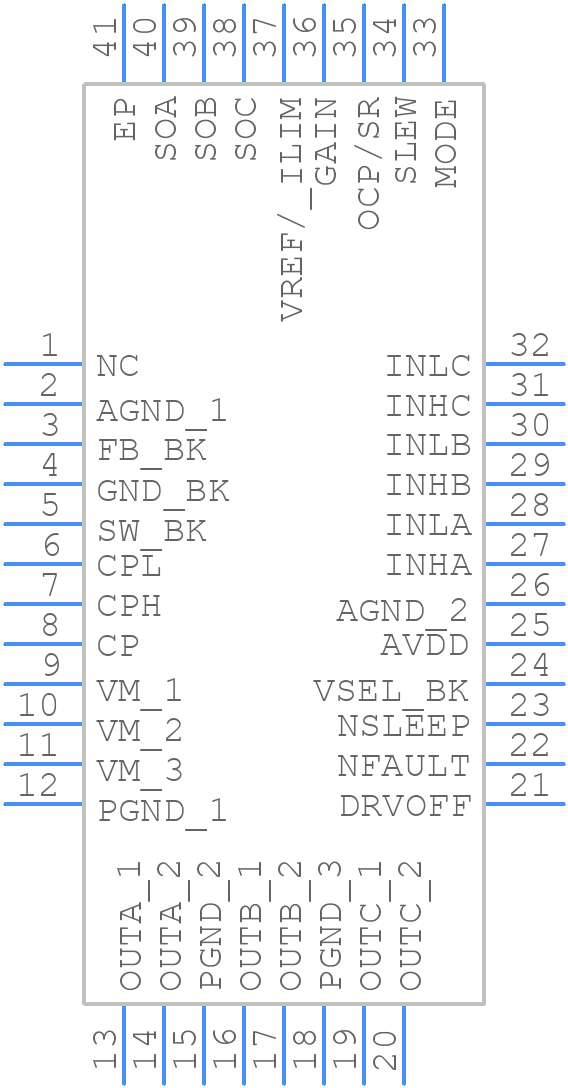

Use the download button to access the DRV8316CTQRGFRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV83,
or try a keyword search, such as Motion Control Electronics
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
