DRV8328ARUYR - Texas Instruments

Description: 60 V 1000/2000 mA 3-phase gate driver

Download DRV8328ARUYR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

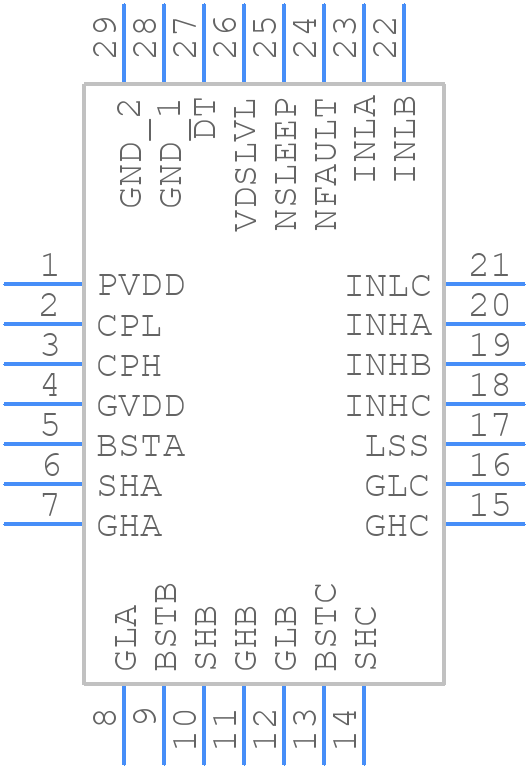

Symbol
DRV8328ARUYR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8328ARUYR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RUY0028A
click to zoom
3D Models
DRV8328ARUYR - Texas Instruments - 3D model - Quad Flat No-Lead - RUY0028A
click to zoom

DRV8328ARUYR Details

  • Manufacturer Part Number:

    DRV8328ARUYR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • High Side Driver:

    YES

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PQCC-N28

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Peak Current Limit-Nom:

    2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWQCCN

  • Package Equivalence Code:

    LCC28,.16SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Max:

    60 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    24 V

  • Supply Voltage1-Max:

    60 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    24 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.14 µs

  • Turn-on Time:

    0.145 µs

  • Width:

    4 mm

DRV8328ARUYR Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VM pin is 36V, but it's recommended to keep it below 35V to ensure reliable operation.
  • To configure the DRV8328ARUYR for 3-phase BLDC motor control, connect the motor windings to the OUTx pins, and use the SPI interface to configure the device for 3-phase operation. Set the MODE pin to logic high, and use the PHASEx pins to select the phase sequence.
  • The nSLEEP pin is an active-low sleep mode input that allows the device to enter a low-power state. To use it, connect the nSLEEP pin to a logic low signal when the motor is not in use, and the device will enter sleep mode, reducing power consumption.
  • The DRV8328ARUYR has built-in overcurrent protection (OCP) that can be configured using the OCPx pins. Connect a resistor from the OCPx pin to ground to set the OCP threshold. The device will limit the current to the set threshold during an overcurrent event.
  • To minimize EMI and ensure reliable operation, follow the recommended PCB layout guidelines in the datasheet, including keeping the power traces short and wide, using a solid ground plane, and placing the device close to the motor windings.
