Description:Motor / Motion / Ignition Controllers & Drivers 60-V 1000/2000 mA 3-phase gate driver with single current sense amplifier 36-WQFN -40 to 125
Texas Instruments provides a recommended PCB layout in the DRV8329AREER evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The gate driver voltage selection depends on the specific requirements of your application, including the type of power MOSFETs or IGBTs used, the switching frequency, and the desired level of performance. As a general guideline, TI recommends using a gate driver voltage that is at least 10-15% higher than the maximum voltage rating of the power devices.
The maximum allowed dead time for the DRV8329AREER is not explicitly specified in the datasheet, but it is typically limited by the minimum pulse width of the input signals and the propagation delay of the device. As a general guideline, TI recommends keeping the dead time below 100 ns to ensure proper operation and minimize the risk of shoot-through currents.
Yes, the DRV8329AREER is a flexible gate driver that can be used with various power stage configurations, including half-bridge, full-bridge, and three-phase configurations. However, the specific configuration and component selection may require additional design considerations and validation to ensure proper operation and performance.
TI provides a troubleshooting guide in the DRV8329AREER datasheet and application notes, which includes steps for debugging common issues, such as checking the input signals, power supply voltages, and fault detection logic. Additionally, engineers can use TI's online resources, such as the E2E forum and technical support, to get assistance from experienced engineers and experts.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DRV8329AREER Overview

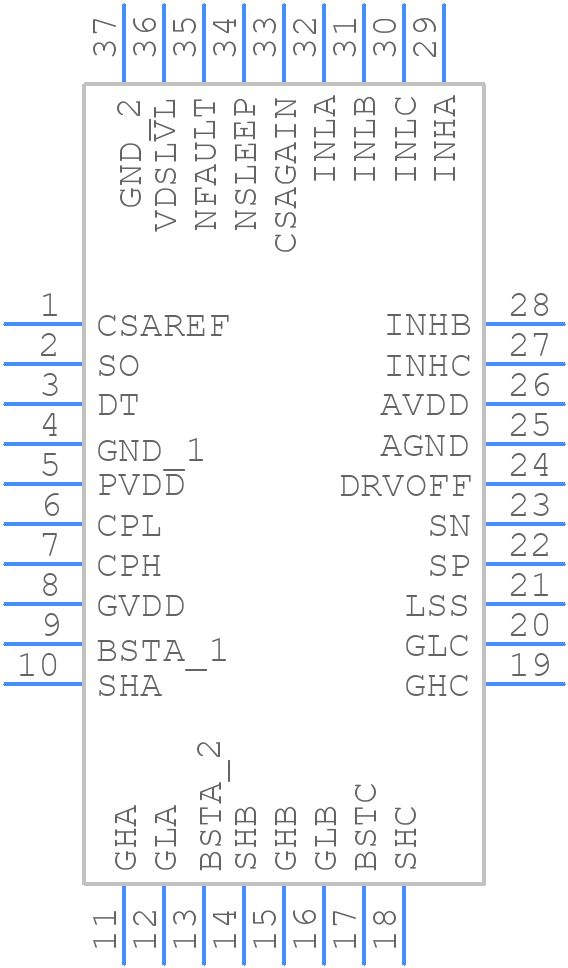

Use the download button to access the DRV8329AREER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV83,
or try a keyword search, such as MOSFET Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
