DRV8332DKDR - Texas Instruments

Description: TEXAS INSTRUMENTS - DRV8332DKDR - PWM Motor Driver, Three Phase, 1 Output, 10.8 V to 13.2 V Supply, 8 A Out, 500 kHz, HSSOP-36

Download DRV8332DKDR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

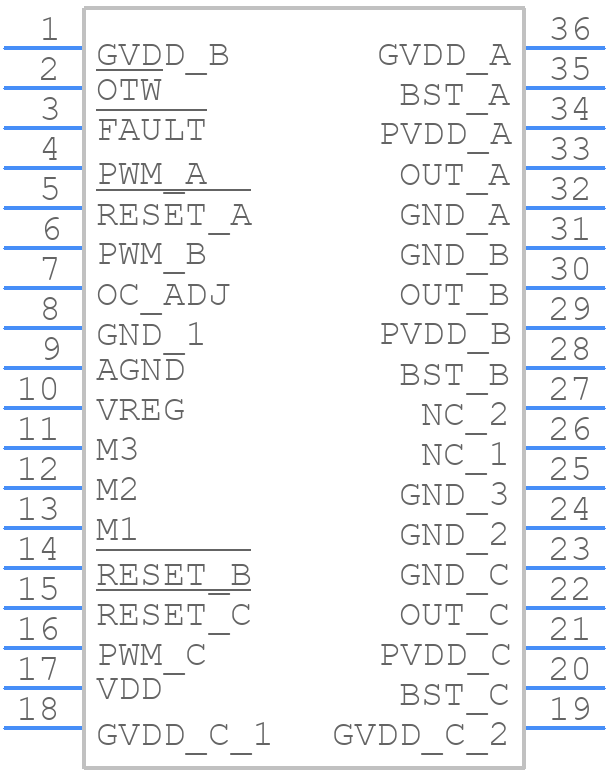

Symbol
DRV8332DKDR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8332DKDR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DKD0036A
click to zoom
3D Models
DRV8332DKDR - Texas Instruments - 3D model - Small Outline Packages - DKD0036A
click to zoom

DRV8332DKDR Details

  • Manufacturer Part Number:

    DRV8332DKDR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    HSSOP-36

  • Pin Count:

    36

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e4

  • Length:

    15.9 mm

  • Moisture Sensitivity Level:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    13 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP36,.56

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.6 mm

  • Supply Current-Max (Isup):

    12 mA

  • Supply Voltage-Max (Vsup):

    52.5 V

  • Supply Voltage-Min (Vsup):

    10.8 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    11 mm

DRV8332DKDR Frequently Asked Questions (FAQs)

  • The DRV8332DKDR can operate from -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C.
  • Use the DRV8332DKDR's evaluation module (EVM) and the MotorWizard software tool to configure the device for your specific motor. The EVM provides a platform to test and optimize the device's performance with your motor.
  • Follow the recommended PCB layout guidelines in the datasheet, and ensure good thermal management by providing a heat sink or thermal pad to dissipate heat. A 2-layer or 4-layer PCB is recommended, with a solid ground plane and a separate power plane.
  • Use the fault diagnostic pins (nFAULT and nOTW) to monitor the device's status. Check the datasheet for fault code definitions and troubleshooting guidelines. Also, ensure proper PCB layout, decoupling, and thermal management to prevent faults.
  • The DRV8332DKDR is designed to operate from a 5V to 18V supply voltage. While it's possible to use it with a 12V or 24V supply, you'll need to ensure the device's internal voltage regulators can handle the higher voltage. Consult the datasheet and application notes for guidance on using the device with non-standard supply voltages.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DRV8332DKDR Overview

Use the download button to access the DRV8332DKDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV83, or try a keyword search, such as Motion Control Electronics
