DRV8340HPHPRQ1 - Texas Instruments

Description: Automotive 6 to 60-V three-phase smart gate driver

Download DRV8340HPHPRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

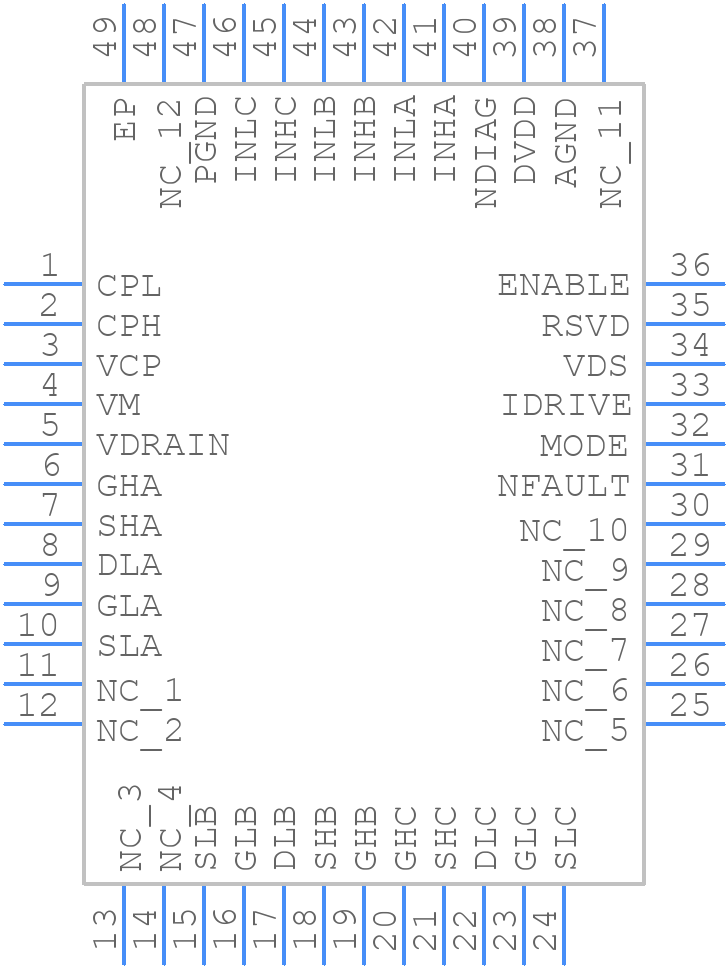

Symbol
DRV8340HPHPRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8340HPHPRQ1 - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PHP(S-PQFP-G48)-A
click to zoom
3D Models
DRV8340HPHPRQ1 - Texas Instruments - 3D model - Quad Flat Packages - PHP(S-PQFP-G48)-A
click to zoom

DRV8340HPHPRQ1 Details

  • Manufacturer Part Number:

    DRV8340HPHPRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-06-07

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO HAS SUPPLY VOLTAGE 5V

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Peak Current Limit-Nom:

    1 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    16 mA

  • Supply Voltage-Max:

    60 V

  • Supply Voltage-Min:

    5.5 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    60 V

  • Supply Voltage1-Min:

    5.5 V

  • Supply Voltage1-Nom:

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    1000 µs

  • Turn-on Time:

    1000 µs

  • Width:

    7 mm

DRV8340HPHPRQ1 Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VM pin is 50V, but it's recommended to keep it below 40V for reliable operation.
  • The DRV8340HPHPRQ1 uses a 3-wire SPI interface. Ensure that the CS pin is low during data transfer, and the SCK frequency should be between 100 kHz and 1 MHz. Also, the device expects a 16-bit data format with the most significant bit (MSB) sent first.
  • The EN (Enable) pin is an active-high input that enables or disables the device. When EN is high, the device is enabled, and when it's low, the device is in a low-power state. This pin can be used to shut down the device when not in use to reduce power consumption.
  • The current sense resistor value depends on the desired current sense accuracy and the maximum expected motor current. A general guideline is to choose a resistor value that results in a voltage drop of 50-100 mV at the maximum expected motor current. TI provides a current sense resistor calculator tool to help with this calculation.
  • A good PCB layout should ensure that the device's thermal pad is connected to a solid ground plane, and the power traces are wide and short to minimize resistance. Additionally, a heat sink or thermal pad can be used to improve heat dissipation. TI provides a thermal design guide and PCB layout recommendations in the datasheet and application notes.
