DRV8340SPHPRQ1 - Texas Instruments

Description: Automotive 6 to 60-V three-phase smart gate driver

Download DRV8340SPHPRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

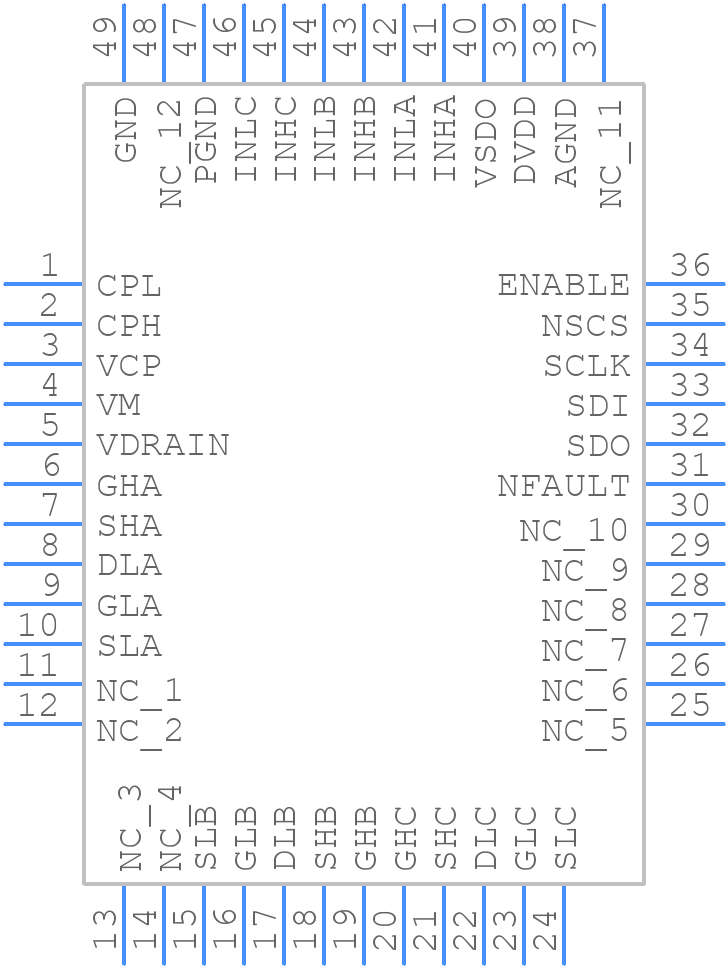

DRV8340SPHPRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8340SPHPRQ1 - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PHP0048C
click to zoom
3D Models
DRV8340SPHPRQ1 - Texas Instruments - 3D model - Quad Flat Packages - PHP0048C
click to zoom

DRV8340SPHPRQ1 Details

  • Manufacturer Part Number:

    DRV8340SPHPRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-06-07

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO HAS SUPPLY VOLTAGE 5V

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Peak Current Limit-Nom:

    1 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    16 mA

  • Supply Voltage-Max:

    60 V

  • Supply Voltage-Min:

    5.5 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    60 V

  • Supply Voltage1-Min:

    5.5 V

  • Supply Voltage1-Nom:

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    1000 µs

  • Turn-on Time:

    1000 µs

  • Width:

    7 mm

DRV8340SPHPRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the DRV8340SPHPRQ1 datasheet (section 10.2) and in the DRV8340SPHPRQ1 Evaluation Module User's Guide (SLAU685). It's essential to follow these guidelines to minimize EMI and noise.
  • Use the DRV8340SPHPRQ1 Motor Parameter Calculator tool (available on the Texas Instruments website) to determine the optimal configuration for your motor and application. This tool helps you calculate the necessary parameters, such as the current sense resistor value and the overcurrent protection threshold.
  • The DRV8340SPHPRQ1 has an operating temperature range of -40°C to 125°C (junction temperature). However, the device's performance and reliability may degrade at extreme temperatures. Ensure proper thermal management and consider derating the device's performance at high temperatures.
  • No, the DRV8340SPHPRQ1 is designed specifically for three-phase brushless DC (BLDC) motors. It's not suitable for brushed DC motors. If you need a driver for a brushed DC motor, consider a different device, such as the DRV8801 or DRV8825.
  • Consult the DRV8340SPHPRQ1 Troubleshooting Guide (SLAU686) and the device's datasheet for guidance on troubleshooting common issues. Additionally, use oscilloscopes and logic analyzers to monitor the device's signals and identify potential problems.
