CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.8 mm
Supply Current-Max:
13 mA
Supply Voltage-Max:
75 V
Supply Voltage-Min:
9 V
Supply Voltage-Nom:
48 V
Supply Voltage1-Max:
102 V
Supply Voltage1-Min:
9 V
Supply Voltage1-Nom:
48 V
Surface Mount:
YES
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Turn-off Time:
1000 µs
Turn-on Time:
1000 µs
Width:
6 mm
DRV8353SMRTAT Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the DRV8353SMRTAT evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The sense resistors (Rs) should be selected based on the motor current and the desired current sense accuracy. A lower sense resistor value provides better current sense accuracy but increases the power loss in the resistor. Texas Instruments recommends using a sense resistor value between 10 mΩ and 100 mΩ, and provides a calculation formula in the datasheet to determine the optimal value.
The DRV8353SMRTAT has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. Engineers should ensure that the device is properly cooled and that the thermal management system is designed to keep the junction temperature within the specified range.
The DRV8353SMRTAT is a highly configurable device that can be used with various motor types and topologies. Texas Instruments provides application notes and design guides that provide configuration guidelines for different motor types, such as brushed DC, stepper, and brushless DC motors, as well as different topologies, such as half-bridge and three-phase configurations.
To ensure EMI and EMC compliance, engineers should follow proper PCB layout and design guidelines, use shielding and filtering components, and implement proper grounding and decoupling techniques. Texas Instruments provides guidelines and recommendations for EMI and EMC compliance in the datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DRV8353SMRTAT Overview

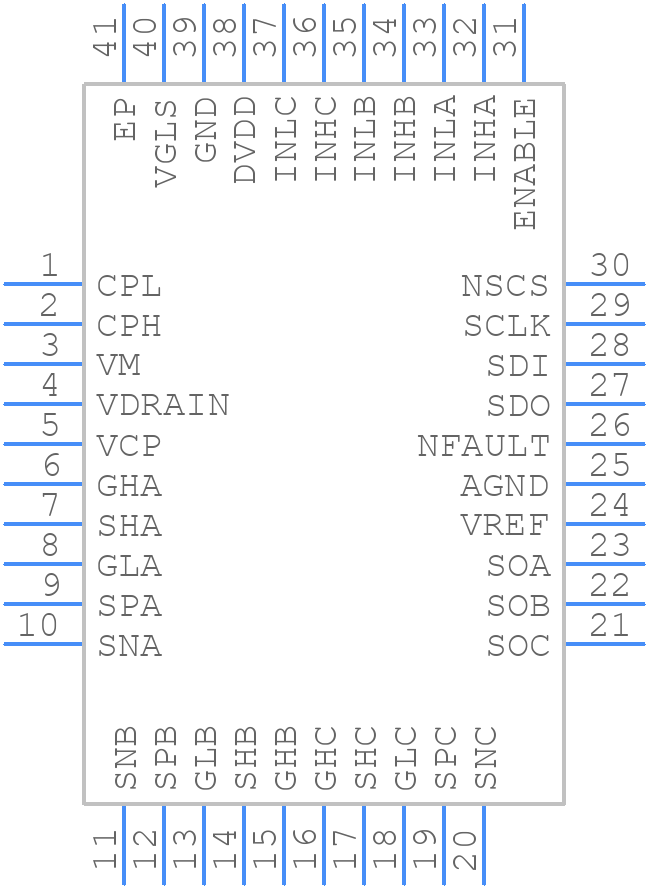

Use the download button to access the DRV8353SMRTAT schematic symbol, PCB footprint, and 3D model.
