DRV8411PWPR - Texas Instruments

Description: Motor / Motion / Ignition Controllers & Drivers 1.65-V to 11-V, 4-A, dual H-bridge motor driver with current regulation 16-HTSSOP -40 to 125

Download DRV8411PWPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

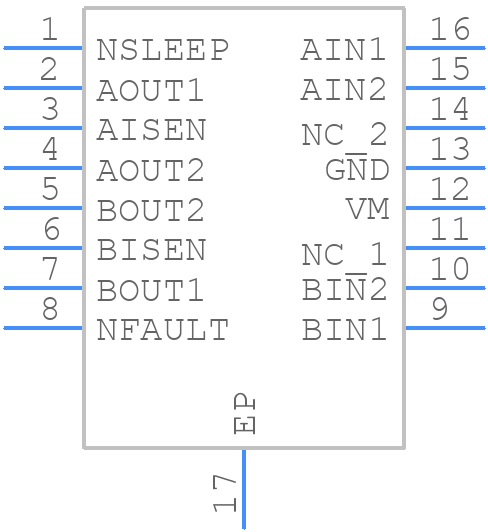

DRV8411PWPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8411PWPR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0016-C01
click to zoom
3D Models
DRV8411PWPR - Texas Instruments - 3D model - Small Outline Packages - PWP0016-C01
click to zoom

DRV8411PWPR Details

  • Manufacturer Part Number:

    DRV8411PWPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    3.5 mA

  • Supply Voltage-Max (Vsup):

    11 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

DRV8411PWPR Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VM pin is 50V, but it's recommended to keep it below 40V for reliable operation.
  • The DRV8411PWPR is a general-purpose motor driver and can be configured for different motor types using the SPI interface. You can set the motor type, current sense gain, and other parameters using the SPI commands. Refer to the application note SLVAUH7 for more details.
  • The DRV8411PWPR can handle a maximum current of 3A per phase, but it's recommended to keep the current below 2A per phase for reliable operation and to prevent overheating.
  • The DRV8411PWPR has a built-in overcurrent protection feature that can be enabled using the SPI interface. You can set the overcurrent threshold and timeout using the SPI commands. The driver will automatically shut down if the current exceeds the set threshold for the specified timeout period.
  • Yes, the DRV8411PWPR is compatible with 5V logic levels, but you need to ensure that the microcontroller can provide a 3.3V or 5V supply to the DRV8411PWPR's VCC pin. You may also need to use level shifters or voltage dividers to interface the microcontroller's 5V logic signals with the DRV8411PWPR's 3.3V logic inputs.
