- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for DRV8424PRGER
- Part Number DRV8424PRGER
- Manufacturer Texas Instruments
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - RGE0024B
- Released Date Jul 17, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
DRV8424PRGER Details
-
Manufacturer Part Number:
DRV8424PRGER
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Date Of Intro:
2020-05-31
-
Manufacturer:
Texas Instruments
-
YTEOL:
15
-
Additional Feature:
MOTOR SUPPLY VOLTAGE IS 4.5 TO 33 V
DRV8424PRGER Frequently Asked Questions (FAQs)
-
The maximum current limit for the DRV8424PRGER is 4A per channel, but it's recommended to keep it below 3.5A for reliable operation.
-
The DRV8424PRGER can be configured for half-bridge or full-bridge operation by connecting the appropriate pins and setting the MODE pin accordingly. Refer to the datasheet and application notes for specific configuration details.
-
The VREG pin is used to regulate the internal voltage of the DRV8424PRGER. It should be connected to a 1uF capacitor to ground and a 10kΩ resistor to VIN. This ensures stable operation and reduces noise.
-
The DRV8424PRGER has built-in overvoltage protection (OVP) and undervoltage protection (UVP). However, it's recommended to add external protection circuits, such as TVS diodes or voltage regulators, to ensure robust protection against voltage transients and faults.
-
A good layout practice is to keep the high-current paths short and wide, and to use thermal vias to dissipate heat. A heat sink or thermal pad can be added to the exposed pad to improve thermal management.
Trust Checks
Community Provided
System Verified
Community Approved
DRV8424PRGER Overview

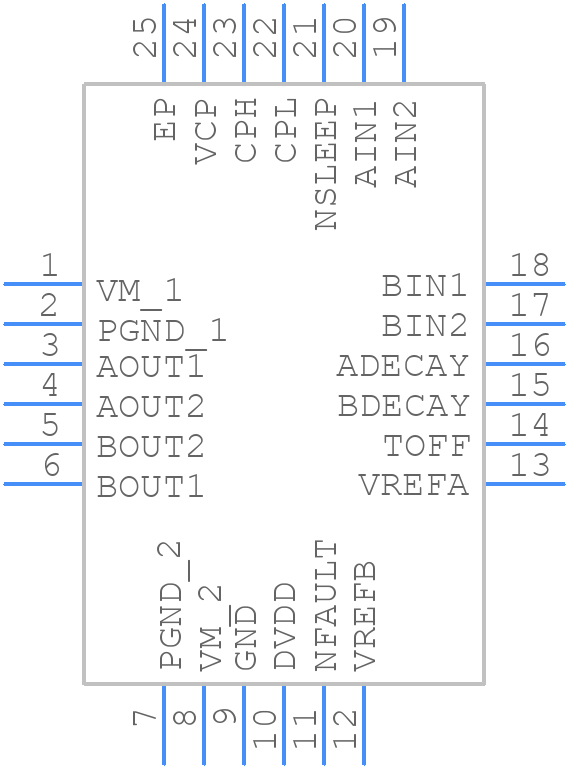

Use the download button to access the DRV8424PRGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV84,
or try a keyword search, such as Motion Control Electronics
