The DRV8425RGER can operate from -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C.
The DRV8425RGER is a general-purpose motor driver and can be configured for different motor types (e.g., brushed DC, stepper, or brushless DC) by adjusting the input pins (e.g., PHASE, ENABLE, and DIR) and the external components (e.g., resistors and capacitors) according to the motor's requirements.
The DRV8425RGER has a maximum current rating of 2.5A per channel, but the actual current limit depends on the PCB design, thermal management, and ambient temperature.
The DRV8425RGER has built-in overcurrent protection (OCP) and overtemperature protection (OTP). Additionally, you can use external components (e.g., fuses, thermistors, and heat sinks) to enhance protection and ensure reliable operation.
The DRV8425RGER has a maximum voltage rating of 35V, but it can be used in high-voltage applications (up to 50V) with proper external components (e.g., voltage regulators, resistors, and capacitors) to ensure safe operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DRV8425RGER Overview

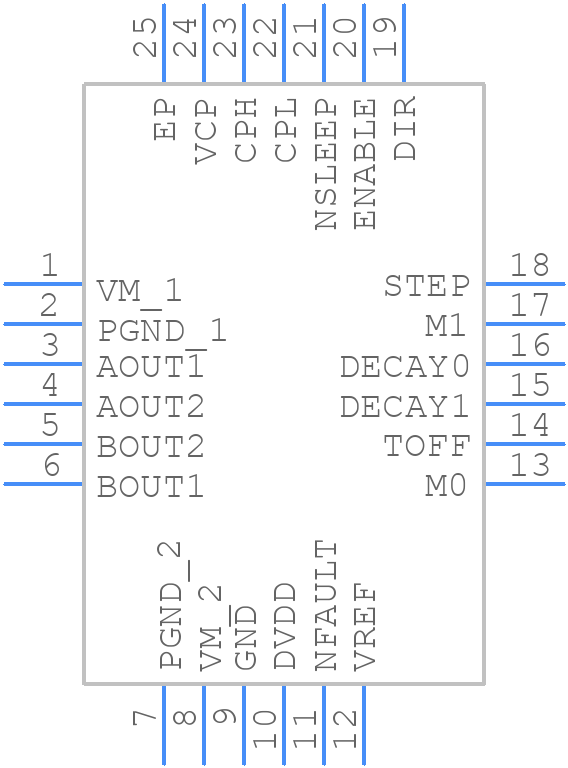

Use the download button to access the DRV8425RGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV84,
or try a keyword search, such as Motion Control Electronics
