DRV8426ERGER - Texas Instruments

Description: Motor/Motion/Ignition Controllers & Drivers 35-V, 1.5-A bipolar stepper or dual brushed motor driver with integrated current sensing 24-VQFN -40 to 125

Download DRV8426ERGER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

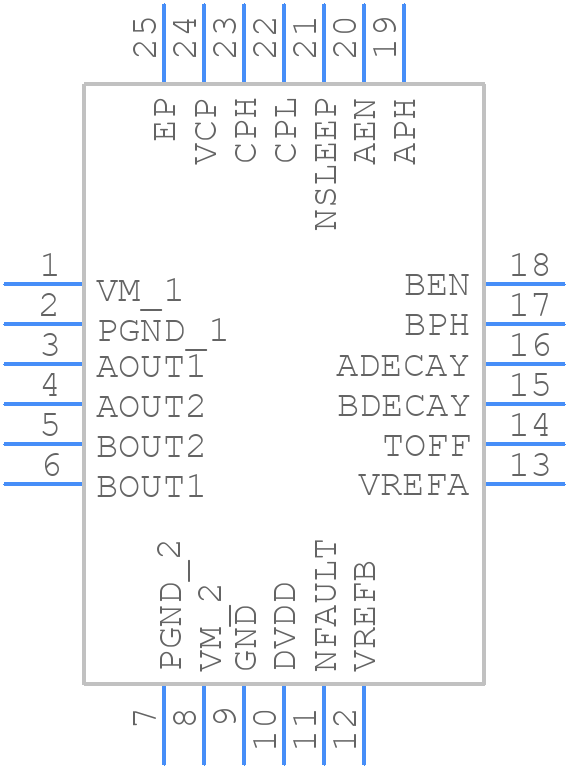

Symbol
DRV8426ERGER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8426ERGER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024B _ 2021-1
click to zoom
3D Models
DRV8426ERGER - Texas Instruments - 3D model - Quad Flat No-Lead - RGE0024B _ 2021-1
click to zoom

DRV8426ERGER Details

  • Manufacturer Part Number:

    DRV8426ERGER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-06-17

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    MOTOR SUPPLY VOLTAGE IS 4.5 TO 33 V

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

DRV8426ERGER Frequently Asked Questions (FAQs)

  • The DRV8426ERGER can operate from -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C.
  • The sense resistor value depends on the desired current sense accuracy and the maximum current rating of your motor. A smaller sense resistor value provides better accuracy but increases power loss. A typical value is 0.1 ohm to 1 ohm.
  • The internal bootstrap diodes are used to generate the gate drive voltage for the high-side FETs. They reduce the need for external components and simplify the design, but they also introduce a voltage drop that affects the overall efficiency and may require additional considerations for high-voltage applications.
  • The DRV8426ERGER has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor divider network. The resistor values determine the overcurrent threshold, and the device will shut down if the current exceeds this threshold.
  • A good PCB layout should minimize the distance between the DRV8426ERGER and the motor, use a solid ground plane, and ensure good thermal conductivity. Thermal management is critical, and a heat sink or thermal pad may be required to keep the device within its operating temperature range.
