DRV8434AQWRGERQ1 - Texas Instruments

Description: Motor / Motion / Ignition Controllers & Drivers Automotive 48V 2.5A bipolar stepper motor driver with integrated current sensing and stall detection

Download DRV8434AQWRGERQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

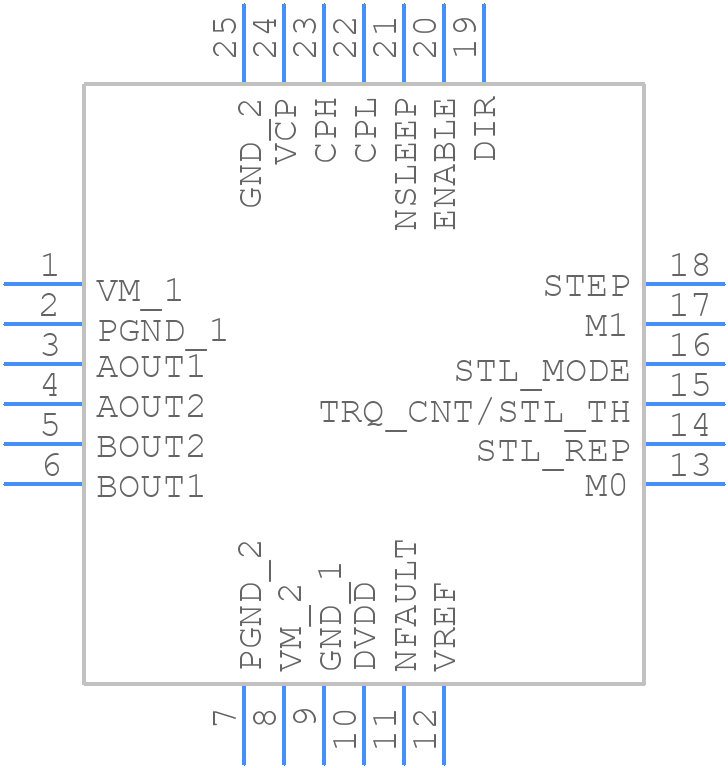

DRV8434AQWRGERQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8434AQWRGERQ1 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024N
click to zoom
3D Models
DRV8434AQWRGERQ1 - Texas Instruments - 3D model - Quad Flat No-Lead - RGE0024N
click to zoom

DRV8434AQWRGERQ1 Details

  • Manufacturer Part Number:

    DRV8434AQWRGERQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Supply Current-Max (Isup):

    6.5 mA

  • Supply Voltage-Max (Vsup):

    48 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

DRV8434AQWRGERQ1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the DRV8434AQWRGERQ1 is -40°C to 125°C.
  • The DRV8434AQWRGERQ1 is a flexible motor driver that can be configured for different motor types using external resistors and capacitors. Refer to the application notes and design guides provided by Texas Instruments for specific configuration examples.
  • The maximum current rating for the DRV8434AQWRGERQ1 is 4A peak and 2A continuous.
  • The DRV8434AQWRGERQ1 has built-in overcurrent protection and thermal shutdown features. Additionally, external protection circuits can be added to prevent overcurrent and overheating. Refer to the datasheet and application notes for more information.
  • Yes, the DRV8434AQWRGERQ1 can be used for BLDC motor control. It has a built-in three-phase bridge driver and can be configured for trapezoidal or sinusoidal commutation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DRV8434AQWRGERQ1 Overview

Use the download button to access the DRV8434AQWRGERQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV84, or try a keyword search, such as Motion Control Electronics

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
