DRV8436PRGER - Texas Instruments

Description: Motor/Motion/Ignition Controllers & Drivers 48-V, 1.5-A bipolar stepper or dual brushed motor driver with integrated current sensing 24-VQFN -40 to 125

Download DRV8436PRGER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

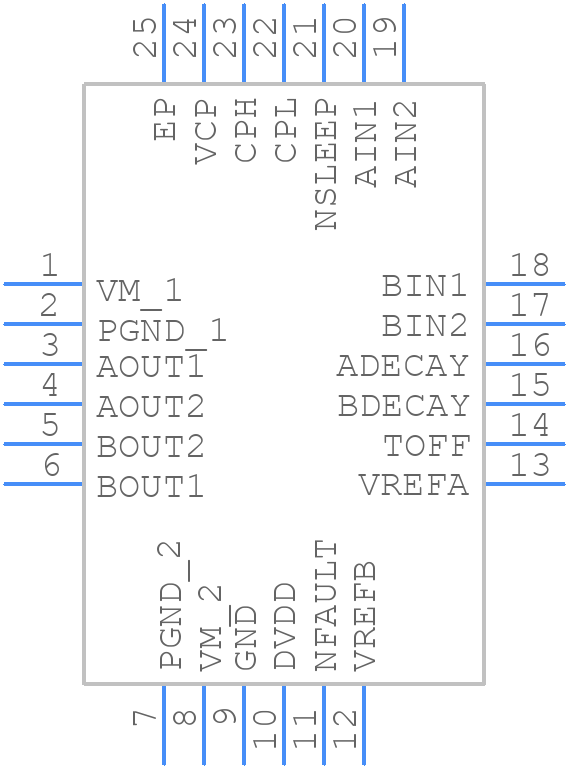

Symbol
DRV8436PRGER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8436PRGER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024B
click to zoom
3D Models
DRV8436PRGER - Texas Instruments - 3D model - Quad Flat No-Lead - RGE0024B
click to zoom

DRV8436PRGER Details

  • Manufacturer Part Number:

    DRV8436PRGER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-08-08

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    6.5 mA

  • Supply Voltage-Max (Vsup):

    48 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

DRV8436PRGER Frequently Asked Questions (FAQs)

  • The maximum current rating of the DRV8436PRGER is 3A per phase, but it can be limited by the thermal performance of the PCB and the application.
  • The DRV8436PRGER is a general-purpose motor driver and can be configured for different motor types (e.g., stepper, DC, or brushless) by adjusting the input pins, such as the STEP/DIR inputs for stepper motors or the PWM inputs for DC or brushless motors.
  • The internal voltage regulator (VREG) in the DRV8436PRGER provides a regulated 5V output for powering external logic, such as microcontrollers or sensors, and can also be used to power the motor driver's internal circuitry.
  • The DRV8436PRGER has built-in overcurrent protection (OCP) and overtemperature protection (OTP) features. Additionally, external protection components, such as fuses or thermistors, can be added to provide extra protection against overcurrent and overheating.
  • A good PCB layout and thermal design for the DRV8436PRGER should include a solid ground plane, wide power traces, and thermal vias to dissipate heat. The device should be placed on a multi-layer PCB with a thermal pad connected to a heat sink or a metal plate for efficient heat dissipation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DRV8436PRGER Overview

Use the download button to access the DRV8436PRGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV84, or try a keyword search, such as Motion Control Electronics

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
