DRV8436PWPR - Texas Instruments

Description: Motor / Motion / Ignition Controllers & Drivers 48-V, 1.5-A bipolar stepper motor driver with integrated current sensing & 1/256 microstepping

Download DRV8436PWPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

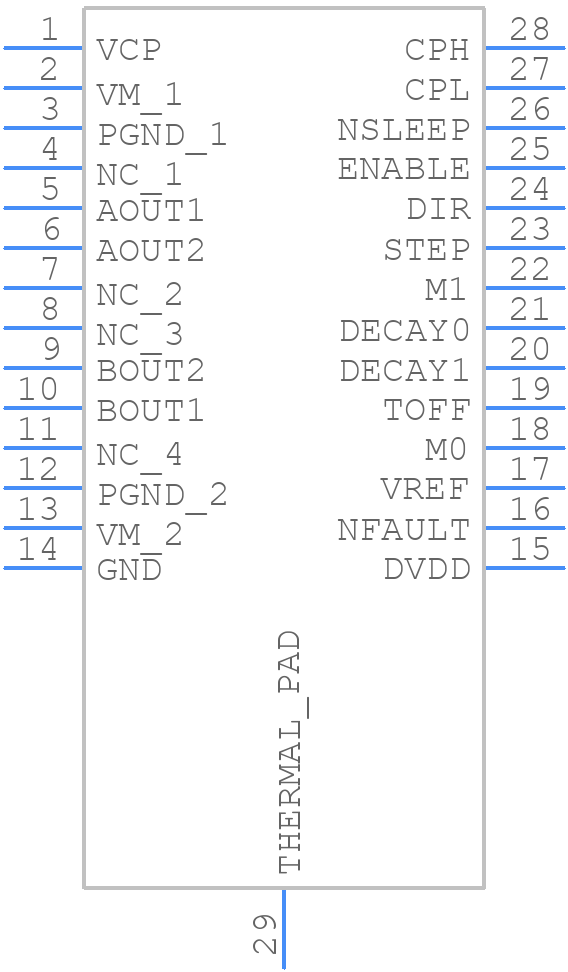

DRV8436PWPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8436PWPR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - HTSSOP (28)_2022
click to zoom
3D Models
DRV8436PWPR - Texas Instruments - 3D model - Small Outline Packages - HTSSOP (28)_2022
click to zoom

DRV8436PWPR Details

  • Manufacturer Part Number:

    DRV8436PWPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-08-08

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    6.5 mA

  • Supply Voltage-Max (Vsup):

    48 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

DRV8436PWPR Frequently Asked Questions (FAQs)

  • The DRV8436PWPR can operate from -40°C to 150°C, but the recommended operating temperature range is -20°C to 85°C for optimal performance.
  • TI recommends following the layout guidelines in the DRV8436PWPR datasheet, including keeping the high-current paths short and away from sensitive analog signals, using a solid ground plane, and placing decoupling capacitors close to the device.
  • The recommended input voltage range for the DRV8436PWPR is 8V to 60V, but it can operate from 6V to 65V with reduced performance.
  • The DRV8436PWPR can be configured for different motor types by adjusting the input pins and internal registers. For example, for brushed DC motors, the PHASE and ENABLE pins can be used to control the motor direction and speed. For brushless DC motors, the DRV8436PWPR can be configured to use the 3-phase output stage and internal PWM generator.
  • The maximum current rating for the DRV8436PWPR is 3A per phase, but the actual current handling capability depends on the PCB layout, thermal management, and operating conditions.
