DRV8601NMBR - Texas Instruments

Description: Motor/Motion/Ignition Controllers & Drivers Haptic driver for ERM/LRA with 1.8-V logic & low power consumption 8-NFBGA -40 to 85

Download DRV8601NMBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

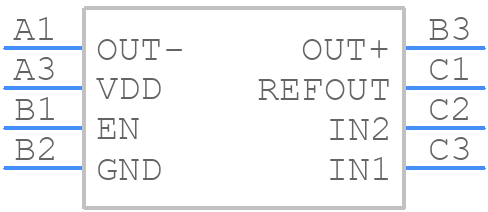

Symbol
DRV8601NMBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8601NMBR - Texas Instruments PCB footprint - BGA - BGA - NMB0008A
click to zoom
3D Models
DRV8601NMBR - Texas Instruments - 3D model - BGA - NMB0008A
click to zoom

DRV8601NMBR Details

  • Manufacturer Part Number:

    DRV8601NMBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-PBGA-B8

  • JESD-609 Code:

    e1

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA8,3X3,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

DRV8601NMBR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the DRV8601NMBR evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize EMI.
  • The sense resistors (Rs) should be chosen based on the motor current and the desired current sense accuracy. A lower sense resistor value provides better current sense accuracy but increases the power loss in the resistor. TI recommends using 0.1 ohm to 1 ohm sense resistors for most applications.
  • The maximum allowed voltage on the VM pin is 45V, which is the absolute maximum rating. However, the recommended operating voltage range is 12V to 42V to ensure reliable operation and prevent damage to the device.
  • The DRV8601NMBR has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor divider network. The OCP threshold can be set by selecting the appropriate resistor values. TI provides a calculation tool to help determine the OCP threshold.
  • No, the DRV8601NMBR is designed for brushed DC motors only. It does not have the necessary commutation logic or high-side FETs to drive a brushless DC motor. For brushless DC motor applications, TI recommends using a dedicated brushless DC motor driver such as the DRV8301 or DRV8353.
