DRV8702DQRHBTQ1 - Texas Instruments

Description: Automotive Half-Bridge Gate Driver

Download DRV8702DQRHBTQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

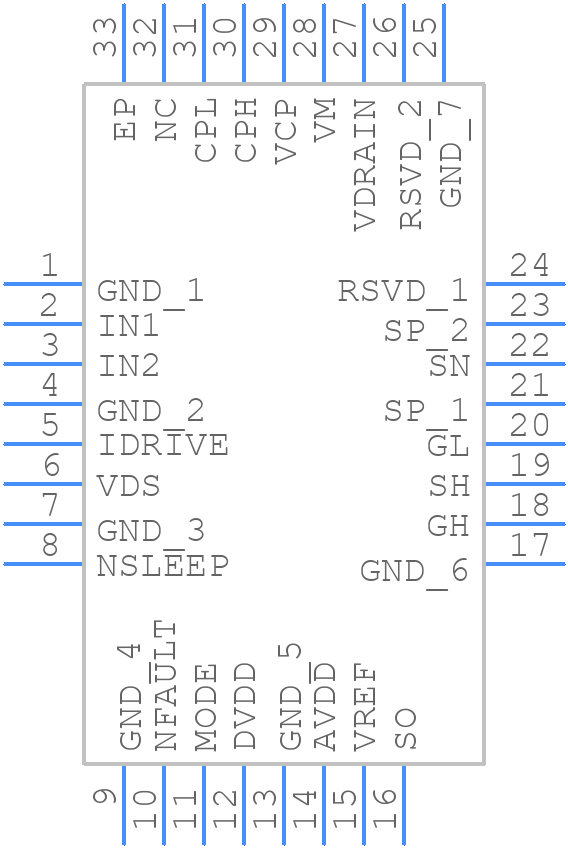

DRV8702DQRHBTQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8702DQRHBTQ1 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB0032T-021-1
click to zoom
3D Models
DRV8702DQRHBTQ1 - Texas Instruments - 3D model - Quad Flat No-Lead - RHB0032T-021-1
click to zoom

DRV8702DQRHBTQ1 Details

  • Manufacturer Part Number:

    DRV8702DQRHBTQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-03-26

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    45 V

  • Supply Voltage-Min (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    13.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

DRV8702DQRHBTQ1 Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VM pin is 50V, but it's recommended to keep it below 40V for reliable operation.
  • To configure the DRV8702DQRHBTQ1 for 3-phase brushless DC motor control, connect the 3-phase motor windings to the OUT1-OUT6 pins, and use the SPI interface to configure the device for 3-phase operation. Refer to the application note SLVA945 for more details.
  • The DRV8702DQRHBTQ1 can handle a maximum current of 2A per phase, but the actual current handling capability depends on the PCB design, thermal management, and other system-level factors.
  • The DRV8702DQRHBTQ1 has a built-in overcurrent protection feature that can be enabled through the SPI interface. The device can detect overcurrent conditions and respond by shutting down the outputs or reducing the current limit. Refer to the datasheet for more details on configuring overcurrent protection.
  • The nFAULT pin is an active-low fault indicator that signals a fault condition, such as overcurrent, overtemperature, or undervoltage. The nFAULT pin can be connected to a microcontroller or other monitoring circuitry to detect and respond to fault conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DRV8702DQRHBTQ1 Overview

Use the download button to access the DRV8702DQRHBTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV87, or try a keyword search, such as Motion Control Electronics
