DRV8703QRHBTQ1 - Texas Instruments

Description: Automotive Brushed DC Gate Driver

Download DRV8703QRHBTQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

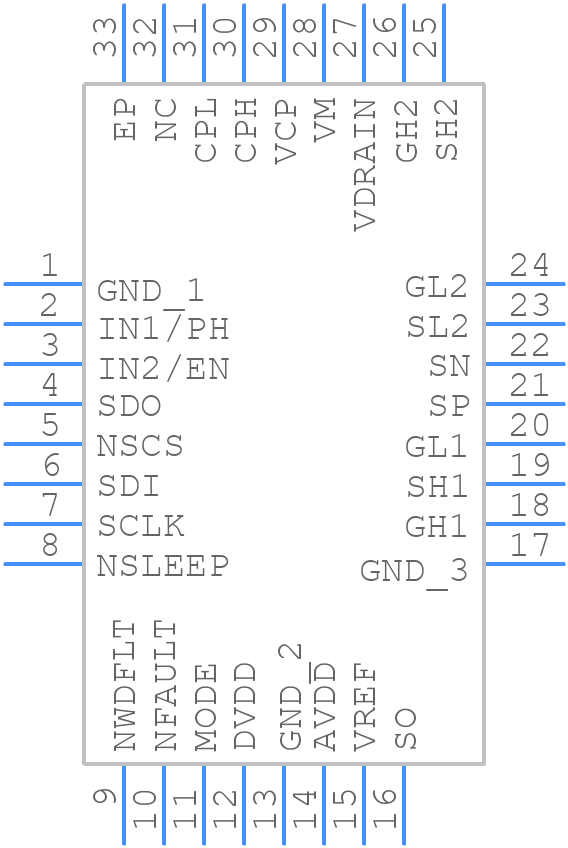

DRV8703QRHBTQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8703QRHBTQ1 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB0032N
click to zoom
3D Models
DRV8703QRHBTQ1 - Texas Instruments - 3D model - Quad Flat No-Lead - RHB0032N
click to zoom

DRV8703QRHBTQ1 Details

  • Manufacturer Part Number:

    DRV8703QRHBTQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2016-11-12

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    45 V

  • Supply Voltage-Min (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    13.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

DRV8703QRHBTQ1 Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VM pin is 50V, but it's recommended to keep it below 40V for reliable operation.
  • To configure the DRV8703QRHBTQ1 for 3-phase brushless DC motor control, connect the motor windings to the OUTx pins, and use the SPI interface to configure the device for 3-phase mode. Refer to the application note SLVAUH5 for more details.
  • The nFAULT pin is an active-low fault indicator that signals a fault condition, such as overcurrent, overtemperature, or undervoltage. It can be used to trigger a system shutdown or alarm in case of a fault.
  • The DRV8703QRHBTQ1 has a built-in overcurrent protection feature. To implement it, connect a sense resistor in series with the motor windings, and configure the device to monitor the current through the sense resistor. The device will automatically shut down if the current exceeds the programmed threshold.
  • The maximum switching frequency of the DRV8703QRHBTQ1 is 100 kHz, but it can be adjusted using the SPI interface to optimize performance and efficiency for specific applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DRV8703QRHBTQ1 Overview

Use the download button to access the DRV8703QRHBTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV87, or try a keyword search, such as Motion Control Electronics
