DRV8704DCPR - Texas Instruments

Description: Dual Brushed DC Gate Driver (PWM Ctrl)

Download DRV8704DCPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

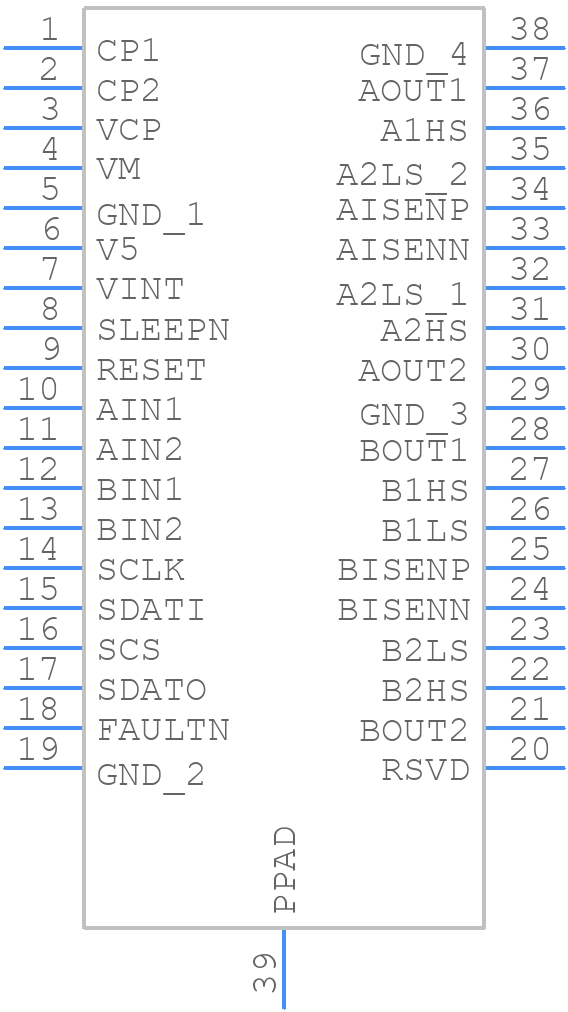

DRV8704DCPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8704DCPR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DCP (R-PDSO-G38)
click to zoom
3D Models
DRV8704DCPR - Texas Instruments - 3D model - Small Outline Packages - DCP (R-PDSO-G38)
click to zoom

DRV8704DCPR Details

  • Manufacturer Part Number:

    DRV8704DCPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G38

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP38,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    22 mA

  • Supply Voltage-Max (Vsup):

    52 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

DRV8704DCPR Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VM pin is 50V, but it's recommended to keep it below 40V for reliable operation.
  • To configure the DRV8704DCPR for 3-phase brushless DC motor control, connect the motor windings to the OUTx pins, and use the INx pins to control the high-side and low-side FETs. Refer to the application note SLVA945 for more details.
  • The EN (enable) pin is used to enable or disable the device. When EN is high, the device is enabled, and when EN is low, the device is disabled. You can use the EN pin to shut down the device when not in use to reduce power consumption.
  • The DRV8704DCPR has built-in overcurrent protection. You can set the overcurrent threshold using the OCx pins. When an overcurrent condition is detected, the device will shut down and latch off until the EN pin is cycled low and then high again.
  • For optimal performance, it's recommended to follow a 4-layer PCB stack-up with a solid ground plane, and to keep the high-current paths short and wide. Refer to the application note SLVA946 for more details on PCB layout guidelines.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DRV8704DCPR Overview

Use the download button to access the DRV8704DCPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV87, or try a keyword search, such as Motion Control Electronics
