DRV8711DCP - Texas Instruments

Description: TEXAS INSTRUMENTS - DRV8711DCP . - Motor Driver/Controller, Stepper, 8V to 52V supply, 52V/1 Output, HTSSOP-38

Download DRV8711DCP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

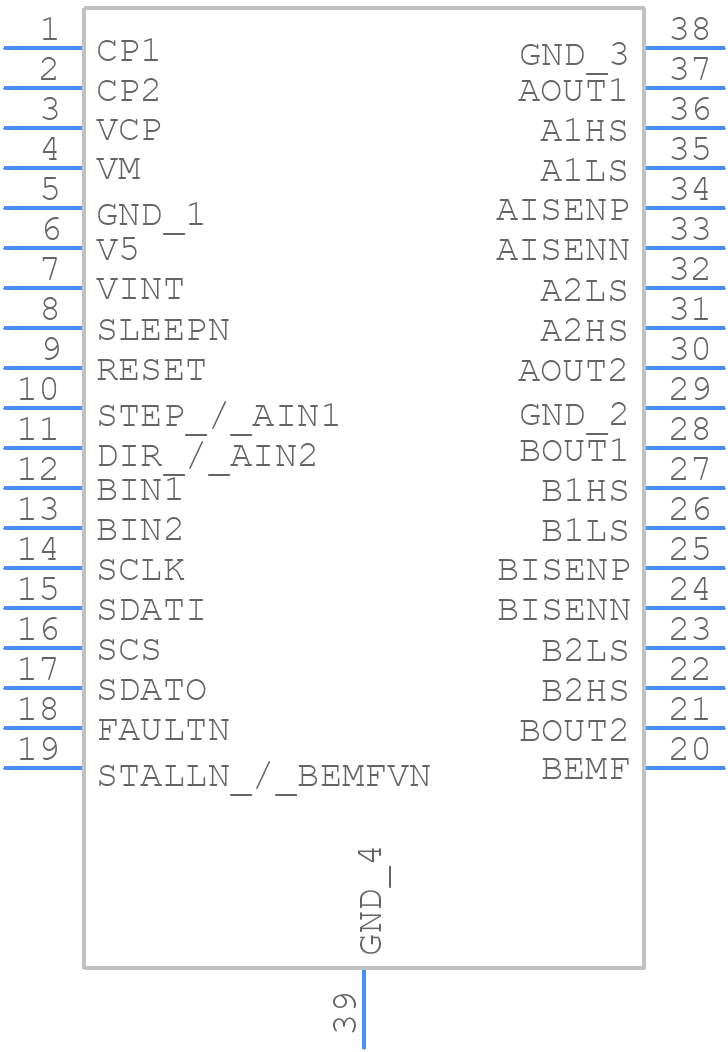

Symbol
DRV8711DCP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8711DCP - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DCP0038A
click to zoom
3D Models
DRV8711DCP - Texas Instruments - 3D model - Small Outline Packages - DCP0038A
click to zoom

DRV8711DCP Details

  • Manufacturer Part Number:

    DRV8711DCP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G38

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP38,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    20 mA

  • Supply Voltage-Max (Vsup):

    52 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

DRV8711DCP Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VM pin is 50V, but it's recommended to keep it below 40V for reliable operation.
  • The DRV8711DCP can be configured for different motor types (e.g., stepper, DC, or brushless) by setting the MODE pins and configuring the SPI registers. Refer to the application notes and user guides for specific configuration examples.
  • The nFAULT pin is an active-low fault indicator that signals a fault condition, such as overcurrent, overtemperature, or undervoltage. You can use it to trigger an interrupt or reset the device in case of a fault.
  • The DRV8711DCP has built-in current sensing and limiting capabilities. You can configure the current sense amplifiers and set the current limit threshold using the SPI registers. Refer to the datasheet and application notes for more information.
  • For optimal performance and thermal management, follow the recommended layout guidelines in the datasheet and application notes. Ensure good thermal conductivity, use a heat sink if necessary, and avoid thermal hotspots.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DRV8711DCP Overview

Use the download button to access the DRV8711DCP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV87, or try a keyword search, such as Motion Control Electronics

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
