DRV8804DWR - Texas Instruments

Description: Motor/Motion/Ignition Controllers & Drivers 1.5A Unipol Solenoid Relay Driver

Download DRV8804DWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

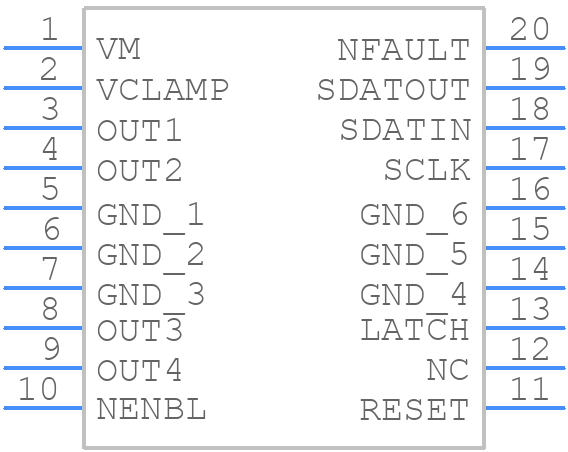

DRV8804DWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8804DWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0020A
click to zoom
3D Models
DRV8804DWR - Texas Instruments - 3D model - Small Outline Packages - DW0020A
click to zoom

DRV8804DWR Details

  • Manufacturer Part Number:

    DRV8804DWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    4

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max (Isup):

    2.1 mA

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    8.2 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

DRV8804DWR Frequently Asked Questions (FAQs)

  • The maximum voltage rating for the DRV8804DWR is 45V, but it's recommended to operate within the absolute maximum rating of 40V to ensure reliable operation.
  • The DRV8804DWR can be configured for half-bridge or full-bridge operation by connecting the appropriate pins. For half-bridge operation, connect the HIN and LIN pins together, and for full-bridge operation, connect the HIN and LIN pins to separate inputs.
  • The minimum input voltage required for the DRV8804DWR to operate is 8V, but it's recommended to operate with a minimum input voltage of 10V to ensure reliable operation.
  • The DRV8804DWR has built-in overcurrent protection, but it's recommended to add external current sensing and protection circuitry to ensure reliable operation. Additionally, the device has a thermal shutdown feature that turns off the device in case of overheating.
  • The maximum switching frequency supported by the DRV8804DWR is 100kHz, but it's recommended to operate at a lower frequency to ensure reliable operation and minimize EMI.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DRV8804DWR Overview

Use the download button to access the DRV8804DWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV88, or try a keyword search, such as Motion Control Electronics

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
