DRV8816PWPR - Texas Instruments

Description: Dual Half H-Bridge Motor Driver

Download DRV8816PWPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

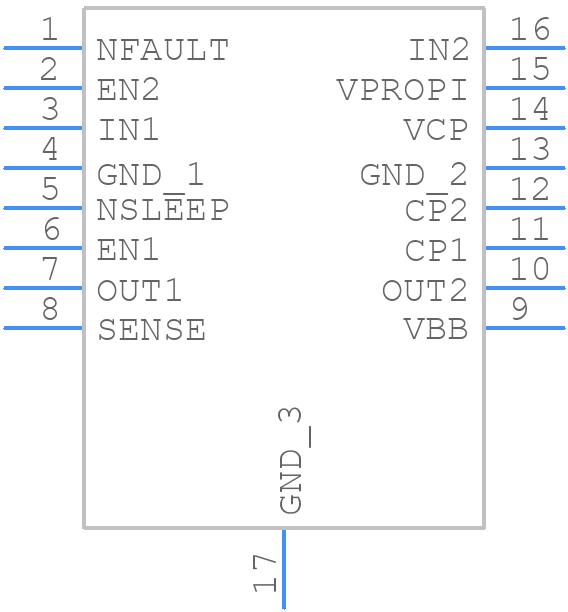

DRV8816PWPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8816PWPR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0016B
click to zoom
3D Models
DRV8816PWPR - Texas Instruments - 3D model - Small Outline Packages - PWP0016B
click to zoom

DRV8816PWPR Details

  • Manufacturer Part Number:

    DRV8816PWPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    38 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Surface Mount:

    YES

  • Technology:

    DMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

DRV8816PWPR Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VM pin is 40V, but it's recommended to keep it below 30V for reliable operation.
  • The current limit can be adjusted by changing the value of the sense resistor (Rs) connected between the IS pin and ground. A smaller Rs value will increase the current limit, while a larger Rs value will decrease it.
  • The EN (enable) pin is used to enable or disable the motor driver. When EN is high, the driver is enabled, and when EN is low, the driver is disabled. This pin can be used to implement a shutdown or standby mode in your system.
  • To protect the DRV8816PWPR from back-EMF, you can add a freewheeling diode (D1) in parallel with the motor. This diode will provide a path for the back-EMF current when the motor is turned off.
  • The maximum operating frequency of the DRV8816PWPR is 100 kHz. However, the actual operating frequency may be limited by the motor and the system's requirements.
