Part Image

DRV8823DCA - Texas Instruments

Description: Texas Instruments DRV8823DCA, Full Bridge Motor Driver, Serial Interface Motor Driver, 48-Pin HTSSOP

Download DRV8823DCA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

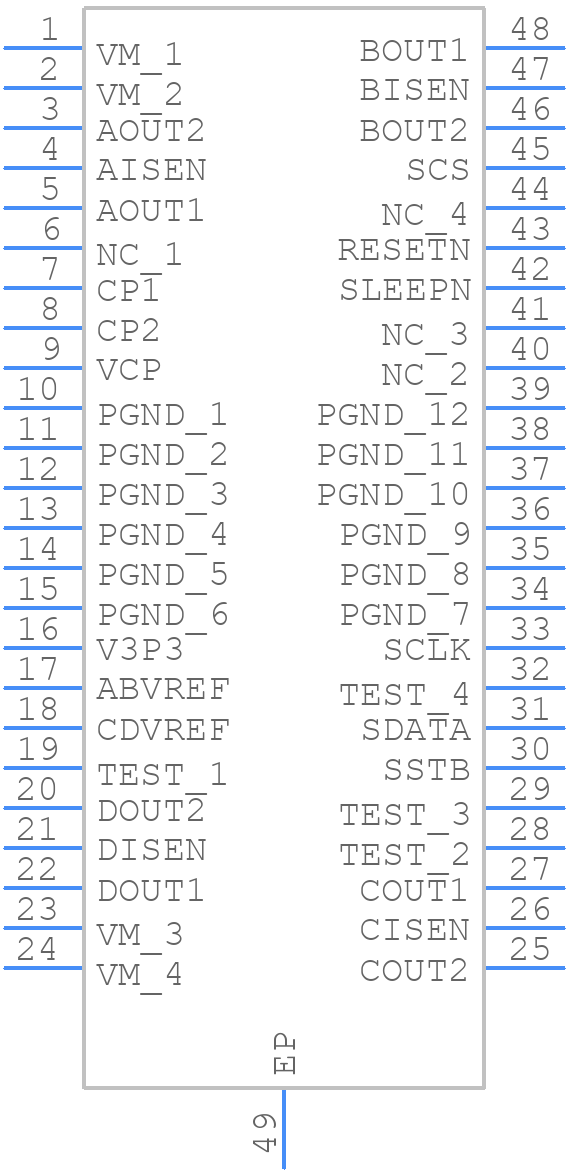

Symbol
DRV8823DCA - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8823DCA - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DCA (R-PDSO-G48)_2021
click to zoom
3D Models
DRV8823DCA - Texas Instruments - 3D model - Small Outline Packages - DCA (R-PDSO-G48)_2021
click to zoom

DRV8823DCA Details

  • Manufacturer Part Number:

    DRV8823DCA

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Pin Count:

    48

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G48

  • JESD-609 Code:

    e4

  • Length:

    12.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP48,.3,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    8 mA

  • Supply Voltage-Max (Vsup):

    32 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.1 mm

DRV8823DCA Frequently Asked Questions (FAQs)

  • The maximum current rating of the DRV8823DCA is 2.5A per phase, but it can be limited by the thermal performance of the PCB and the motor being driven.
  • The microstepping mode can be configured by setting the M0, M1, and M2 pins to select one of 32 microstepping modes. The specific configuration depends on the desired microstepping mode and the motor being driven.
  • The TRQ pin is a torque regulation pin that allows the user to adjust the maximum current limit of the driver. It can be used to limit the current to prevent motor damage or to optimize motor performance.
  • To troubleshoot issues with the DRV8823DCA, check the power supply voltage, motor connections, and thermal performance of the PCB. Also, verify that the driver is properly configured and that the motor is compatible with the driver.
  • Yes, the DRV8823DCA can be used with stepper motors that have different coil resistances or inductances. However, the driver's performance may vary depending on the motor's characteristics, and the user may need to adjust the driver's configuration or add external components to optimize performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DRV8823DCA Overview

Use the download button to access the DRV8823DCA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV88, or try a keyword search, such as Motion Control Electronics

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
