DRV8830DGQ - Texas Instruments

Description: Texas Instruments DRV8830DGQ Motor Driver,, Low Voltage Motor Driver, 10-Pin MSOP

Download DRV8830DGQ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

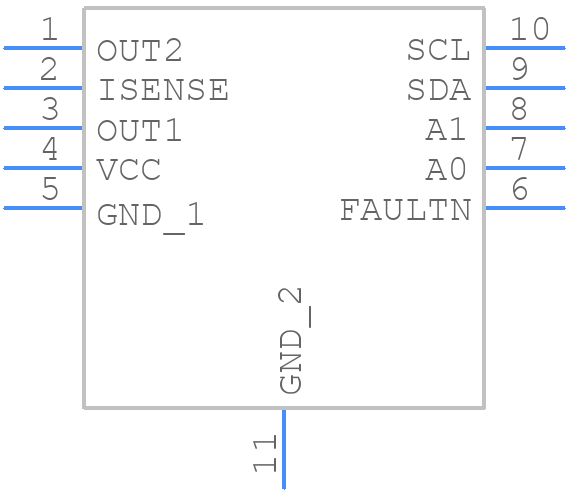

DRV8830DGQ - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8830DGQ - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGQ(S-PDSO-G10)-
click to zoom
3D Models
DRV8830DGQ - Texas Instruments - 3D model - Small Outline Packages - DGQ(S-PDSO-G10)-
click to zoom

DRV8830DGQ Details

  • Manufacturer Part Number:

    DRV8830DGQ

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MSOP

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    2 mA

  • Supply Voltage-Max (Vsup):

    6.8 V

  • Supply Voltage-Min (Vsup):

    2.75 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

DRV8830DGQ Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VM pin is 15V, but it's recommended to keep it below 12V for reliable operation.
  • The sense resistor value depends on the motor current and the desired current sense accuracy. A general guideline is to choose a sense resistor value that results in a voltage drop of around 50-100mV at the maximum motor current.
  • The internal bootstrap diode is used to generate the gate drive voltage for the high-side FET. It's essential to ensure that the bootstrap capacitor is properly sized and placed close to the DRV8830DGQ to minimize parasitic inductance.
  • The DRV8830DGQ has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor divider network. The resistor values should be chosen to set the desired overcurrent threshold.
  • A good PCB layout should ensure that the high-current paths are short and wide, and that the thermal pad is connected to a large copper area for heat dissipation. A thermal interface material can be used to improve heat transfer between the DRV8830DGQ and the PCB.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DRV8830DGQ Overview

Use the download button to access the DRV8830DGQ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV88, or try a keyword search, such as Motion Control Electronics

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
