The maximum current rating of the DRV8838DSGR is 2.5A per channel, with a peak current of 3.5A.
To configure the DRV8838DSGR for microstepping, you need to set the M0, M1, and M2 pins to select the desired microstepping mode. The datasheet provides a table to determine the correct pin settings for 1, 2, 4, 8, 16, or 32 microsteps per full step.
The TRQ (Torque) pin is an analog input that allows you to adjust the motor current limit. By applying a voltage to this pin, you can dynamically adjust the motor current to optimize performance and reduce heat generation.
The DRV8838DSGR has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits. However, it's still recommended to add external protection components, such as a voltage regulator and TVS diodes, to ensure the device operates within the recommended voltage range.
The nFAULT (active-low fault) pin is an output that indicates when a fault condition occurs, such as overcurrent, overtemperature, or undervoltage. This pin can be connected to a microcontroller or other logic circuit to trigger a fault response.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DRV8838DSGR Overview

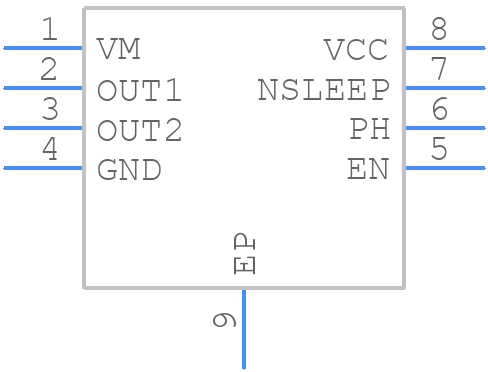

Use the download button to access the DRV8838DSGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV88,
or try a keyword search, such as Motion Control Electronics
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
