DRV8872DDA - Texas Instruments

Description: Automotive 3.6-A Brushed DC Motor Driver With Fault Reporting

Download DRV8872DDA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

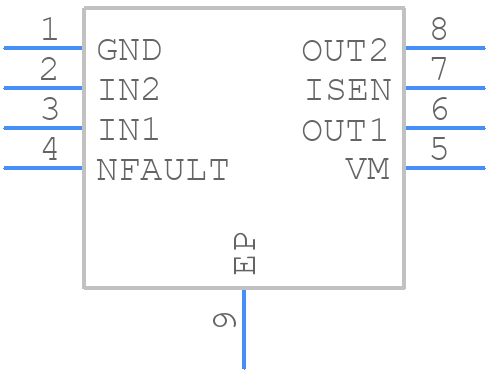

Symbol
DRV8872DDA - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8872DDA - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DDA (R-PDSO-G8)-ren1
click to zoom
3D Models
DRV8872DDA - Texas Instruments - 3D model - Small Outline Packages - DDA (R-PDSO-G8)-ren1
click to zoom

DRV8872DDA Details

  • Manufacturer Part Number:

    DRV8872DDA

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.7 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.7 mm

  • Supply Current-Max (Isup):

    10 mA

  • Supply Voltage-Max (Vsup):

    45 V

  • Supply Voltage-Min (Vsup):

    6.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

DRV8872DDA Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VM pin is 40V, but it's recommended to keep it below 36V for reliable operation.
  • The sense resistor value depends on the motor current and the desired current sense accuracy. A general guideline is to choose a sense resistor value that results in a voltage drop of around 50-100mV at the maximum motor current.
  • The EN (enable) pin is used to enable or disable the driver. When EN is high, the driver is enabled, and when EN is low, the driver is disabled. You can use the EN pin to control the motor's operation, such as turning it on or off, or to implement a shutdown function.
  • The DRV8872DDA has built-in overcurrent protection, but you can also add external protection components, such as fuses or PTC thermistors, to provide additional protection. Additionally, you can use the sense resistor and the OC (overcurrent) pin to detect overcurrent conditions and take corrective action.
  • The DRV8872DDA can operate up to 100kHz, but the maximum operating frequency depends on the specific application and the motor's characteristics. It's recommended to consult the datasheet and application notes for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
