DRV8873SPWPRQ1 - Texas Instruments

Description: Automotive H-bridge motor driver with integrated current sensing and current sense output

Download DRV8873SPWPRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

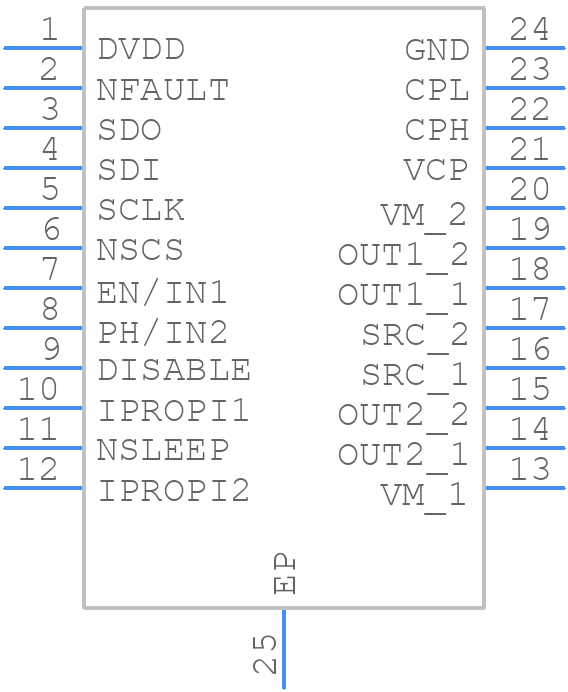

DRV8873SPWPRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8873SPWPRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP
click to zoom
3D Models
DRV8873SPWPRQ1 - Texas Instruments - 3D model - Small Outline Packages - PWP
click to zoom

DRV8873SPWPRQ1 Details

  • Manufacturer Part Number:

    DRV8873SPWPRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    10 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    37 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    13.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

DRV8873SPWPRQ1 Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VM pin is 40V, but it's recommended to keep it below 36V for reliable operation.
  • The sense resistor value depends on the motor current and the desired current sense accuracy. A good starting point is to use the formula Rsense = 0.05 / Imax, where Imax is the maximum motor current. Then, adjust the value based on the desired current sense accuracy and the motor's characteristics.
  • The EN (enable) pin is used to enable or disable the driver. When EN is high, the driver is enabled, and when EN is low, the driver is disabled. You can use the EN pin to control the motor's operation, such as to implement a shutdown function or to reduce power consumption when the motor is not in use.
  • The DRV8873 has a built-in overcurrent protection (OCP) feature that limits the motor current to a safe value. You can also add external protection components, such as fuses or PTC thermistors, to provide additional protection. Additionally, you can use the current sense output (ISENSE) to monitor the motor current and implement your own overcurrent protection scheme.
  • The maximum operating frequency of the DRV8873 is 100 kHz. However, the actual operating frequency may be limited by the motor's characteristics and the application's requirements.
