DRV8881EPWP - Texas Instruments

Description: Motor / Motion / Ignition Controllers & Drivers A 595-DRV8881EPWPR

Download DRV8881EPWP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

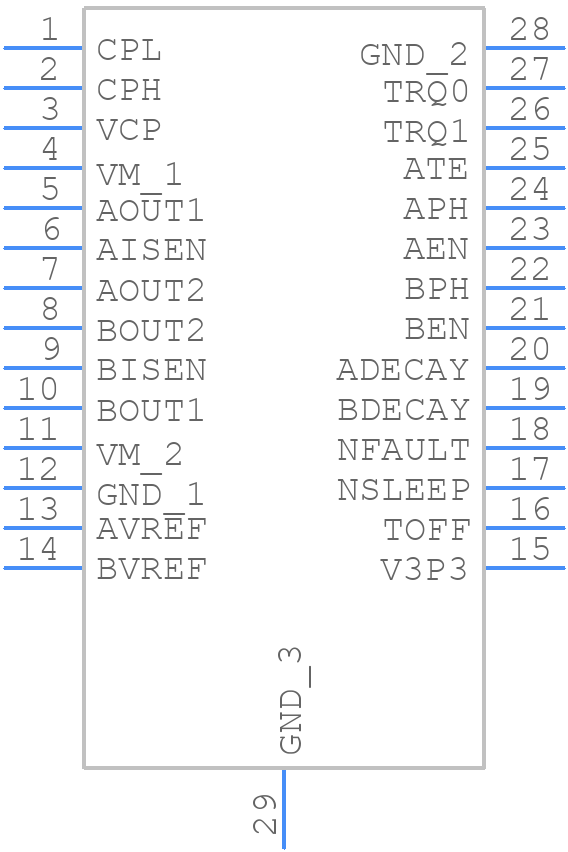

DRV8881EPWP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8881EPWP - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP (R-PDSO-G28)
click to zoom
3D Models
DRV8881EPWP - Texas Instruments - 3D model - Small Outline Packages - PWP (R-PDSO-G28)
click to zoom

DRV8881EPWP Details

  • Manufacturer Part Number:

    DRV8881EPWP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    18 mA

  • Supply Voltage-Max (Vsup):

    45 V

  • Supply Voltage-Min (Vsup):

    6.5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

DRV8881EPWP Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VM pin is 50V, but it's recommended to keep it below 40V for reliable operation.
  • The DRV8881EPWP is a general-purpose motor driver, and the configuration depends on the specific motor type. For example, for a stepper motor, you need to configure the device in microstepping mode, while for a DC motor, you need to configure it in PWM mode. Refer to the application notes and user guides for specific configuration details.
  • The maximum current that the DRV8881EPWP can handle is 2A per phase, but it's recommended to keep it below 1.5A per phase for reliable operation and to prevent overheating.
  • The DRV8881EPWP has built-in overcurrent protection and thermal shutdown features. However, it's recommended to add external protection circuits, such as current sense resistors and thermal sensors, to ensure reliable operation and prevent damage to the device.
  • The DRV8881EPWP is designed to operate with a 5V to 35V voltage supply, but it's recommended to use a 12V or 24V supply for optimal performance. If you need to use a different voltage supply, ensure that it's within the recommended range and that the device is properly configured for the specific voltage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DRV8881EPWP Overview

Use the download button to access the DRV8881EPWP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV88, or try a keyword search, such as Motion Control Electronics

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
