DRV8881ERHRR - Texas Instruments

Description: Motor / Motion / Ignition Controllers & Drivers A 595-DRV8881ERHRT

Download DRV8881ERHRR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

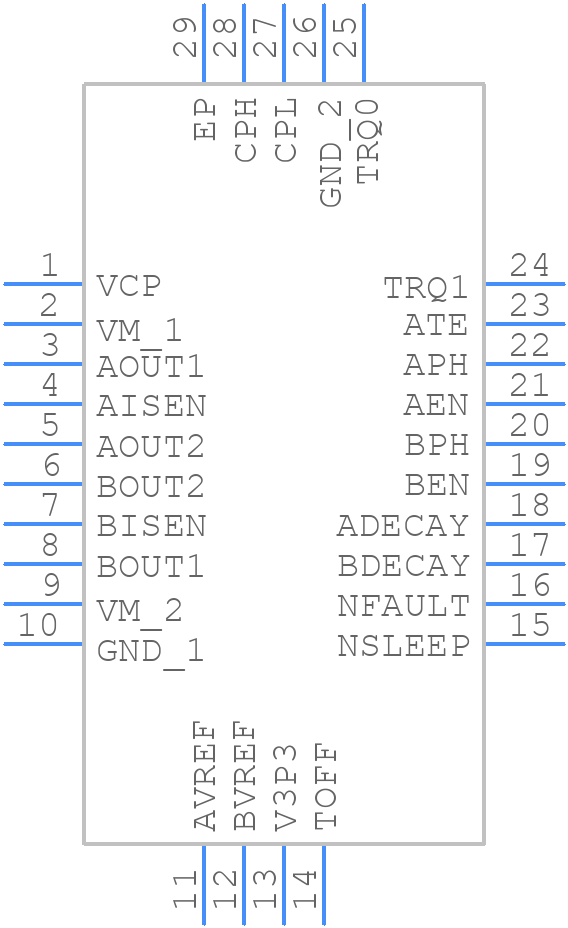

DRV8881ERHRR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8881ERHRR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHR0028A
click to zoom
3D Models
DRV8881ERHRR - Texas Instruments - 3D model - Quad Flat No-Lead - RHR0028A
click to zoom

DRV8881ERHRR Details

  • Manufacturer Part Number:

    DRV8881ERHRR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PQCC-N28

  • JESD-609 Code:

    e4

  • Length:

    5.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.14X.21,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    18 mA

  • Supply Voltage-Max (Vsup):

    45 V

  • Supply Voltage-Min (Vsup):

    6.5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

DRV8881ERHRR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the DRV8881ERHRR datasheet, but it's also important to follow general guidelines for motor driver PCB design, such as keeping the high-current paths short and wide, and using a solid ground plane to reduce EMI.
  • The sense resistor value depends on the motor current and the desired current sense accuracy. A smaller sense resistor value provides better current sense accuracy but increases the power loss in the resistor. A good starting point is to use the recommended sense resistor value in the datasheet, and then adjust based on the specific application requirements.
  • The DRV8881ERHRR has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's important to ensure proper thermal design and heat sinking to prevent overheating, especially in high-current applications.
  • The DRV8881ERHRR has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor divider network. The OCP threshold can be set by adjusting the resistor values, and the device will shut down if the motor current exceeds the set threshold.
  • No, the DRV8881ERHRR is designed for brushed DC motor control only. For BLDC motor control, a different driver IC with three-phase output and commutation logic is required, such as the DRV8301 or DRV8313 from Texas Instruments.
