DRV8884RHRR - Texas Instruments

Description: Motor / Motion / Ignition Controllers & Drivers A 595-DRV8884RHRT

Download DRV8884RHRR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

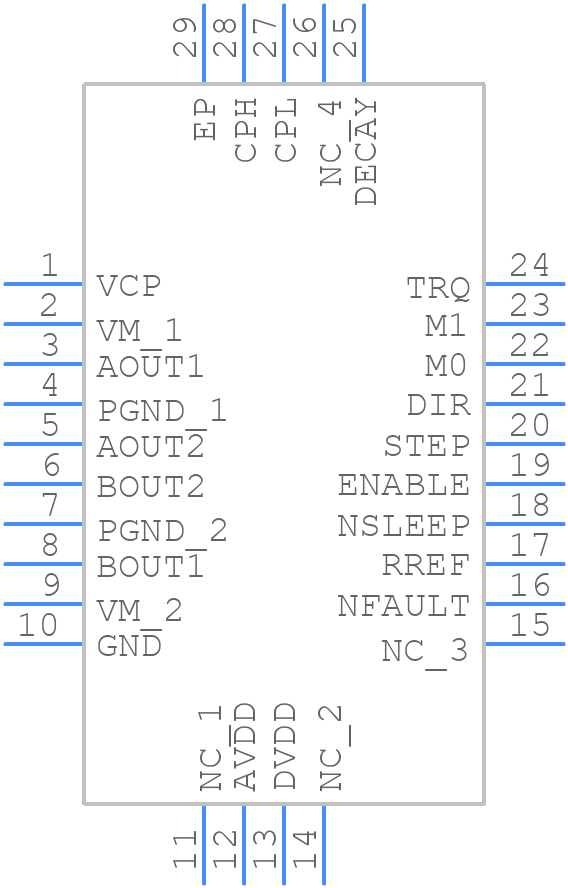

DRV8884RHRR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8884RHRR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHR0028A
click to zoom
3D Models
DRV8884RHRR - Texas Instruments - 3D model - Quad Flat No-Lead - RHR0028A
click to zoom

DRV8884RHRR Details

  • Manufacturer Part Number:

    DRV8884RHRR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2018-11-29

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER
