DRV8885RHRR - Texas Instruments

Description: Motor / Motion / Ignition Controllers & Drivers A 595-DRV8885RHRT

Download DRV8885RHRR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

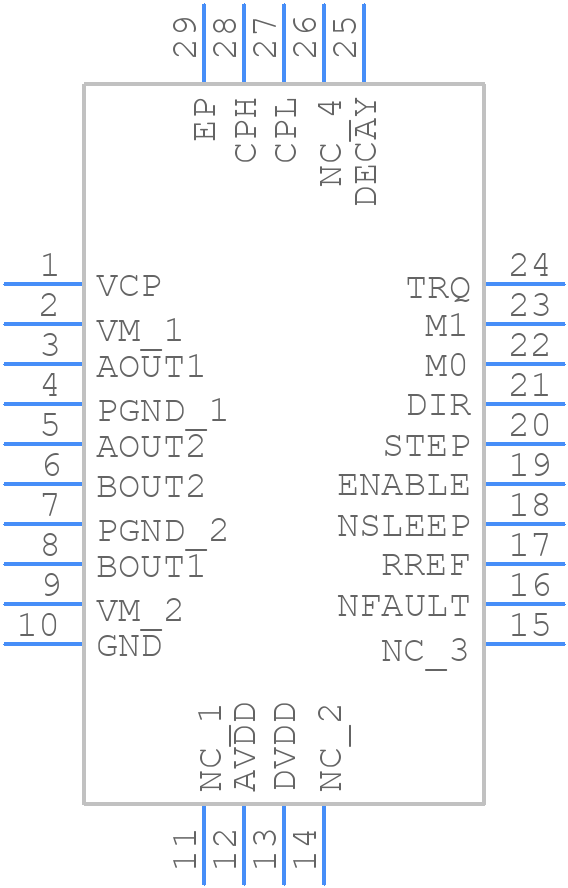

Symbol
DRV8885RHRR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8885RHRR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHR0028A
click to zoom
3D Models
DRV8885RHRR - Texas Instruments - 3D model - Quad Flat No-Lead - RHR0028A
click to zoom

DRV8885RHRR Details

  • Manufacturer Part Number:

    DRV8885RHRR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2018-11-29

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PQCC-N28

  • JESD-609 Code:

    e4

  • Length:

    5.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.14X.22,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    37 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

DRV8885RHRR Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VM pin is 40V, but it's recommended to keep it below 36V to ensure reliable operation.
  • The DRV8885RHRR can be configured for 3-phase or 2-phase operation by connecting the appropriate pins to GND or VCC. For 3-phase operation, connect the PHASE pin to GND, and for 2-phase operation, connect the PHASE pin to VCC.
  • The RSENSE pin is used to sense the current flowing through the motor windings. It's connected to a sense resistor, and the voltage across the sense resistor is proportional to the motor current. The RSENSE pin can be used to implement overcurrent protection, current limiting, or to monitor motor performance.
  • The dead-time between the high-side and low-side FETs can be adjusted by changing the value of the external dead-time capacitor (CT) connected between the DT pin and GND. A larger capacitor value increases the dead-time, while a smaller value decreases it.
  • The DRV8885RHRR requires careful layout and thermal management to ensure reliable operation. It's recommended to follow the layout guidelines in the datasheet, including keeping the high-current paths short and wide, and using thermal vias to dissipate heat from the device.
