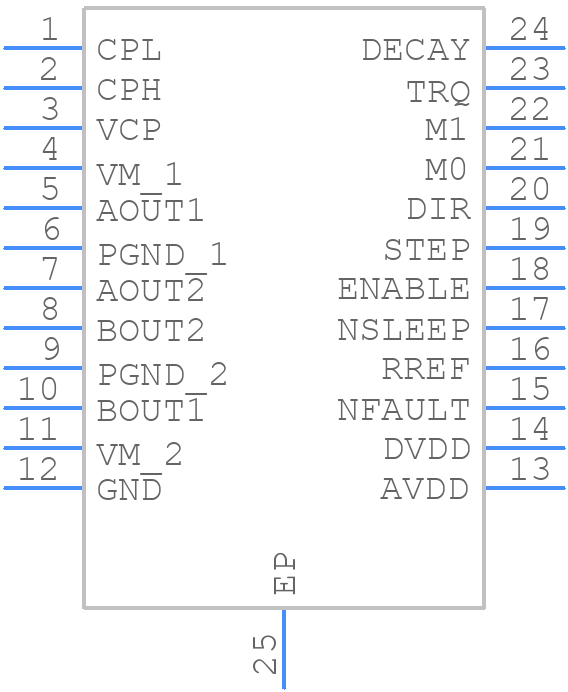

DRV8886PWPR - Texas Instruments

DRV8886PWPR Details

• Manufacturer Part Number:

  DRV8886PWPR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Date Of Intro:

  2017-01-15

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Analog IC - Other Type:

  STEPPER MOTOR CONTROLLER

• JESD-30 Code:

  R-PDSO-G24

• JESD-609 Code:

  e4

• Length:

  7.8 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  24

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  3 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTSSOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  1.2 mm

• Supply Current-Max (Isup):

  8 mA

• Supply Voltage-Max (Vsup):

  37 V

• Supply Voltage-Min (Vsup):

  8 V

• Surface Mount:

  YES

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  4.4 mm
