DRV8889QPWPRQ1 - Texas Instruments

Description: Motor / Motion / Ignition Controllers & Drivers 1.5A automotive stepper motor driver with Smart Tune technology & Stall Detection 24-HTSSOP -40 to 125

Download DRV8889QPWPRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

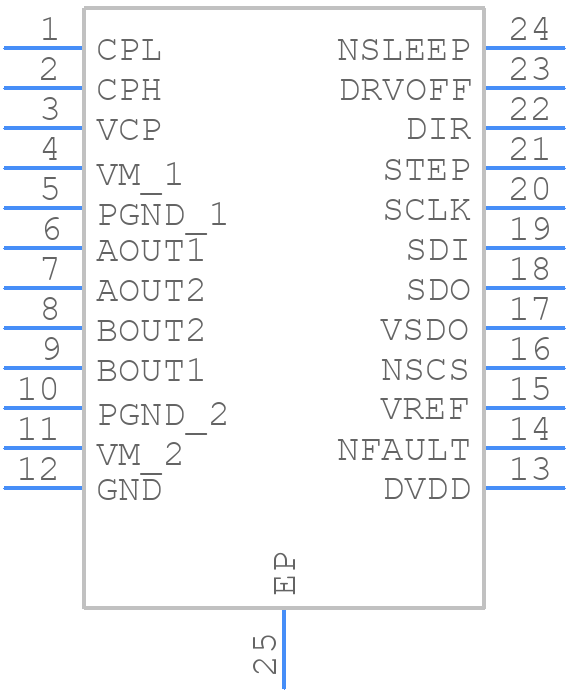

DRV8889QPWPRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8889QPWPRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0024N
click to zoom
3D Models
DRV8889QPWPRQ1 - Texas Instruments - 3D model - Small Outline Packages - PWP0024N
click to zoom

DRV8889QPWPRQ1 Details

  • Manufacturer Part Number:

    DRV8889QPWPRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-04-29

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Supply Voltage-Max (Vsup):

    45 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    13.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

DRV8889QPWPRQ1 Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VM pin is 40V, but it's recommended to keep it below 36V for reliable operation.
  • The DRV8889QPWPRQ1 can be configured for 3-phase or 2-phase operation by setting the PHASE pin high or low, respectively. For 3-phase operation, connect PHASE to VCC, and for 2-phase operation, connect PHASE to GND.
  • The EN pin is an active-high enable input that allows the device to be enabled or disabled. When EN is high, the device is enabled, and when EN is low, the device is disabled. This pin can be used to shut down the device when not in use to reduce power consumption.
  • The current limit of the DRV8889QPWPRQ1 can be adjusted by connecting a resistor (RILIM) between the ILIM pin and GND. The current limit is inversely proportional to the value of RILIM.
  • The FLT pin is an active-low fault output that indicates when a fault condition occurs, such as overcurrent or overtemperature. This pin can be connected to a microcontroller or other logic circuit to detect and respond to fault conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DRV8889QPWPRQ1 Overview

Use the download button to access the DRV8889QPWPRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV88, or try a keyword search, such as Motion Control Electronics

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
