DRV8932PPWPR - Texas Instruments

Description: Motor / Motion / Ignition Controllers & Drivers 35-V, 1-A, quad independent half bridge driver with current sense 28-HTSSOP -40 to 125

Download DRV8932PPWPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

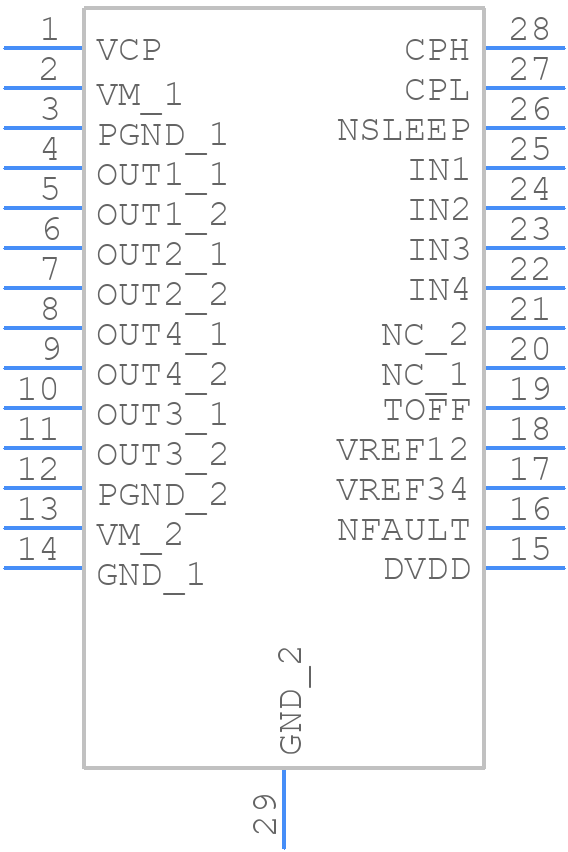

DRV8932PPWPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8932PPWPR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DRV8932PPWPR
click to zoom
3D Models
DRV8932PPWPR - Texas Instruments - 3D model - Small Outline Packages - DRV8932PPWPR
click to zoom

DRV8932PPWPR Details

  • Manufacturer Part Number:

    DRV8932PPWPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    CAN BE USED FOR DC, DC BRUSHLESS, AND STEP MOTOR CONTROL

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    6.5 mA

  • Supply Voltage-Max (Vsup):

    33 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

DRV8932PPWPR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the DRV8932PPWPR evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize EMI.
  • The sense resistors should be selected based on the motor current and the desired current sense accuracy. A lower sense resistor value provides better current sense accuracy but increases the power loss in the sense resistor. A higher sense resistor value reduces power loss but decreases current sense accuracy. TI provides a sense resistor selection guide in the DRV8932PPWPR datasheet.
  • The DRV8932PPWPR has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. The device should be designed to operate within the recommended temperature range to ensure reliability and performance.
  • The DRV8932PPWPR has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a voltage source. The OCP threshold can be set by selecting the appropriate resistor value between the OCP pin and GND. TI provides a detailed explanation of the overcurrent protection feature in the DRV8932PPWPR datasheet.
  • The recommended decoupling capacitor value for the DRV8932PPWPR is 10uF to 22uF, with a voltage rating of 10V or higher. The decoupling capacitor should be placed close to the device to minimize noise and ensure stable operation.
