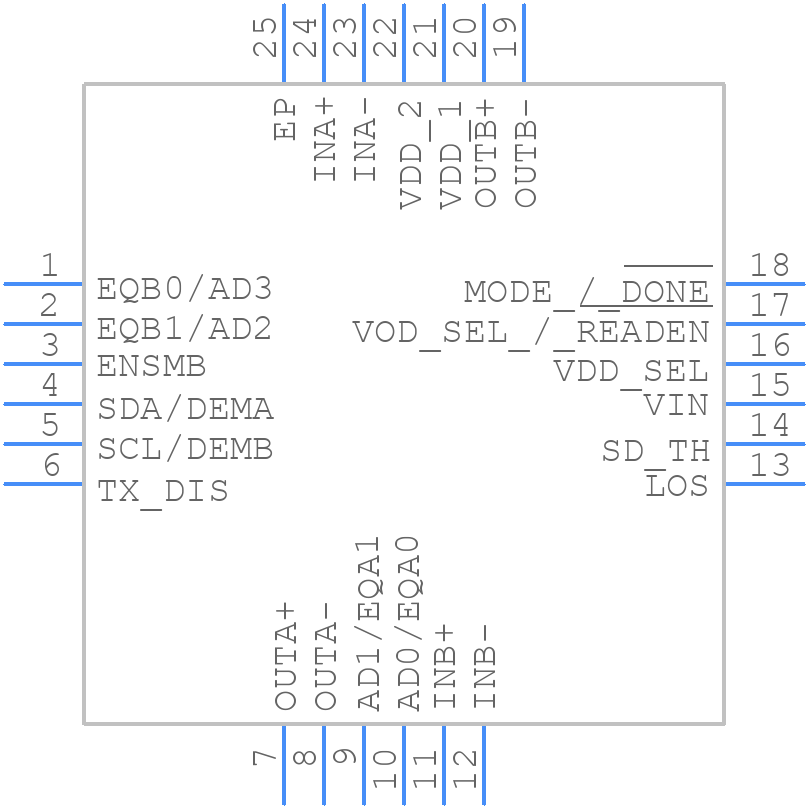

DS100BR111ASQ/NOPB - Texas Instruments

DS100BR111ASQ/NOPB Details

• Manufacturer Part Number:

  DS100BR111ASQ/NOPB

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Data Rate:

  10300000 Mbps

• JESD-30 Code:

  S-PQCC-N24

• JESD-609 Code:

  e3

• Length:

  4 mm

• Moisture Sensitivity Level:

  3

• Number of Channels:

  2

• Number of Functions:

  1

• Number of Terminals:

  24

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  0.8 mm

• Supply Voltage-Nom:

  2.5 V

• Surface Mount:

  YES

• Telecom IC Type:

  TELECOM CIRCUIT

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  4 mm
