DS100DF410SQE/NOPB - Texas Instruments

Description: 10GbE Quad Channel Retimer with Adaptive EQ, CDR and DFE

Download DS100DF410SQE/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

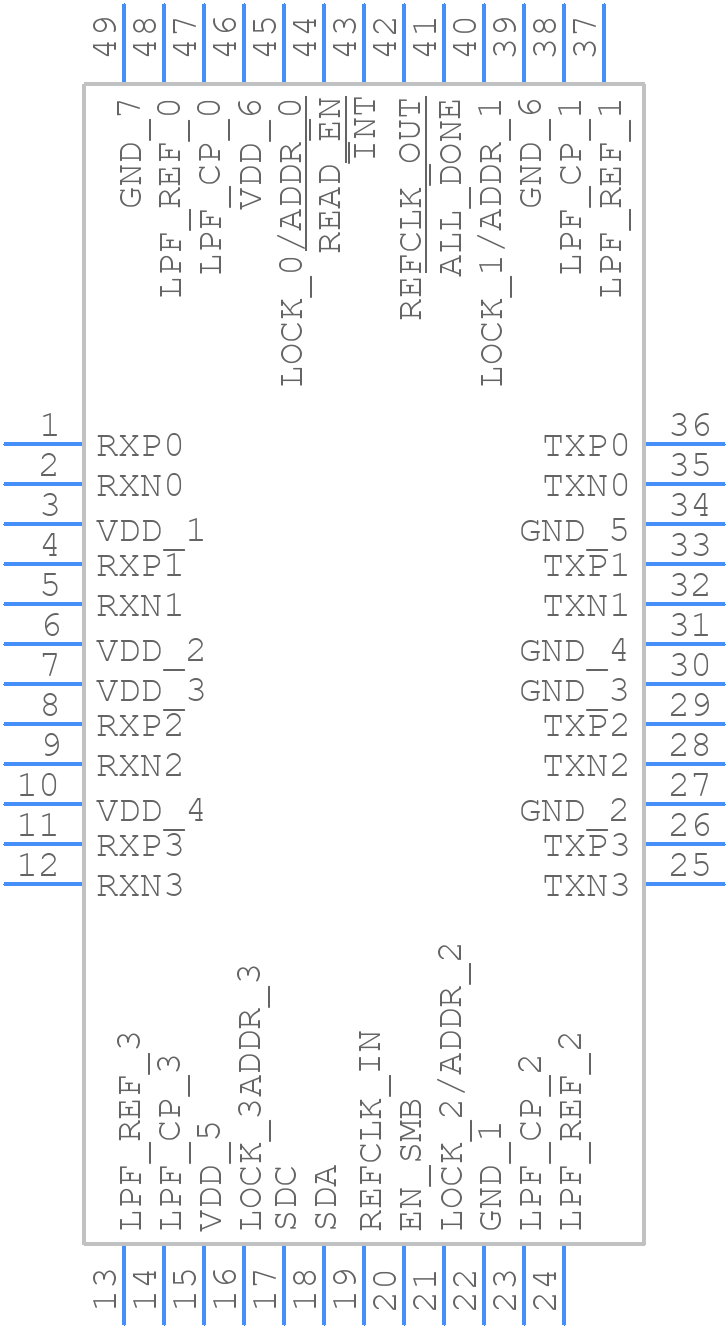

DS100DF410SQE/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DS100DF410SQE/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHS0048A_
click to zoom
3D Models
DS100DF410SQE/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - RHS0048A_
click to zoom

DS100DF410SQE/NOPB Details

  • Manufacturer Part Number:

    DS100DF410SQE/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    48

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    RETIMER

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

DS100DF410SQE/NOPB Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and the input and output traces should be kept short and matched to minimize reflections.
  • Use controlled impedance traces, minimize trace lengths, and use terminations to match the impedance of the transmission lines. Also, use a common mode filter or a ferrite bead to reduce electromagnetic interference (EMI).
  • The maximum cable length depends on the specific application and the signal frequency. As a general guideline, the DS100DF410SQE can support cable lengths up to 100 meters at 10 Gbps, but this may vary depending on the specific use case.
  • Use an oscilloscope to check the signal integrity and eye diagrams at the input and output of the device. Check the power supply voltage and ensure it is within the recommended range. Also, verify that the device is properly configured and that the input signals meet the recommended specifications.
  • Yes, the DS100DF410SQE can be used in a redundant or redundant/fail-safe configuration to ensure high availability and reliability in critical applications. However, this requires careful design and implementation to ensure seamless switchover in case of a failure.
