DS1034-25MUNSISS - Connfly

Description: Connector: D-Sub; PIN: 25; socket; male; straight; THT; 5A; 15mΩ

Download DS1034-25MUNSISS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

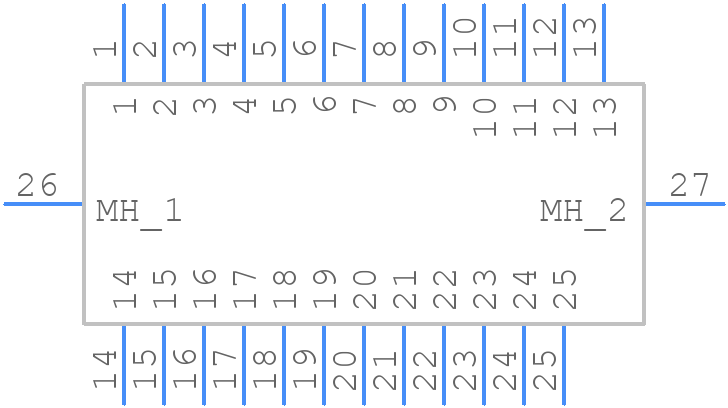

DS1034-25MUNSISS - Connfly - PCB symbol
click to zoom
PCB Footprints

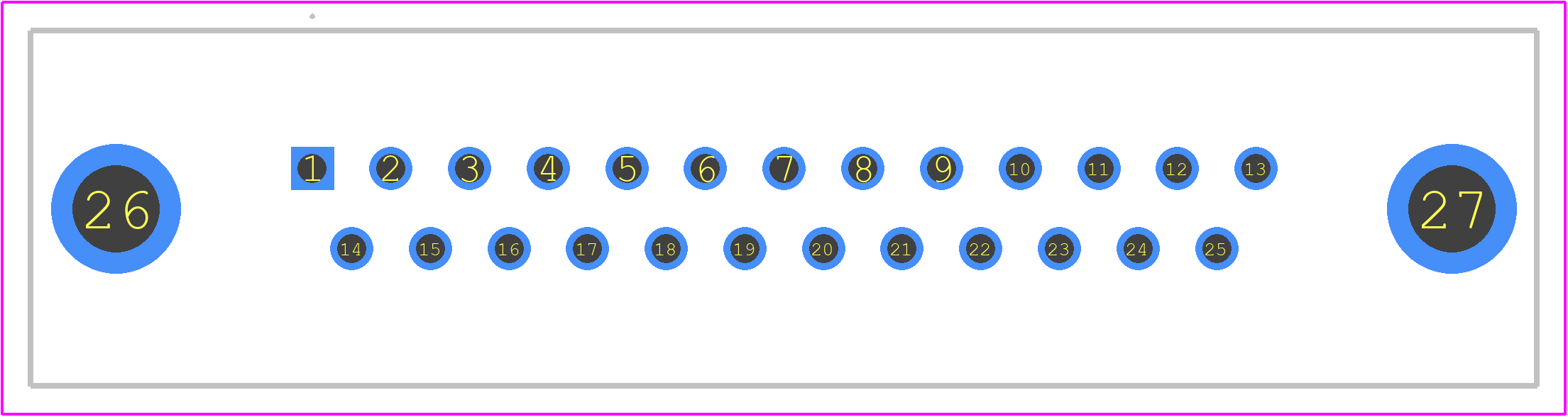

DS1034-25MUNSISS - Connfly PCB footprint - Other - Other - DS1034-25MUNSISS-1
click to zoom
3D Models
DS1034-25MUNSISS - Connfly - 3D model - Other - DS1034-25MUNSISS-1
click to zoom

DS1034-25MUNSISS Details

  • Manufacturer Part Number:

    DS1034-25MUNSISS

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Ningbo connfly electronic CO LTD

  • Board Mounting Option:

    HOLE .118-.137

  • Body Breadth:

    0.492 inch

  • Body Length:

    2.088 inch

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Gender:

    MALE

  • Contact Pattern:

    STAGGERED

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    RND PIN-SKT

  • Dielectric Withstanding Voltage:

    707VAC V

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLUE

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • Mating Contact Pitch:

    0.109 inch

  • Mating Contact Row Spacing:

    0.112 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    2.84 mm

  • Plating Thickness:

    FLASH inch

  • Rated Current (Signal):

    3 A

  • Shell Finish:

    FRONT-NICKEL AND REAR-TIN PLATED

  • Shell Material:

    STEEL

  • Shell Size:

    3/B

  • Terminal Length:

    0.181 inch

  • Terminal Pitch:

    2.77 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    25

DS1034-25MUNSISS Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the DS1034-25MUNSISS is -40°C to 85°C, as specified by the manufacturer.
  • To ensure reliability in high-vibration environments, it's recommended to follow proper mounting and soldering techniques, and consider using additional mechanical support or vibration dampening measures if necessary.
  • While the DS1034-25MUNSISS is not specifically designed for outdoor use, it can be used in humid environments with proper protection and sealing. However, it's essential to follow the manufacturer's guidelines for moisture protection and consider additional measures such as conformal coating or potting.
  • The typical lead time for delivery of the DS1034-25MUNSISS varies depending on the manufacturer's production schedule and inventory levels. It's recommended to contact the manufacturer or authorized distributor for the most up-to-date lead time information.
  • Yes, it's essential to follow standard electrostatic discharge (ESD) precautions when handling the DS1034-25MUNSISS, such as using an ESD wrist strap or mat, and avoiding touching the device's pins or components.
