DS110DF111SQE/NOPB - Texas Instruments

Description: DS110DF111 Low Power Multi-Rate Two-Channel Retimer

Download DS110DF111SQE/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

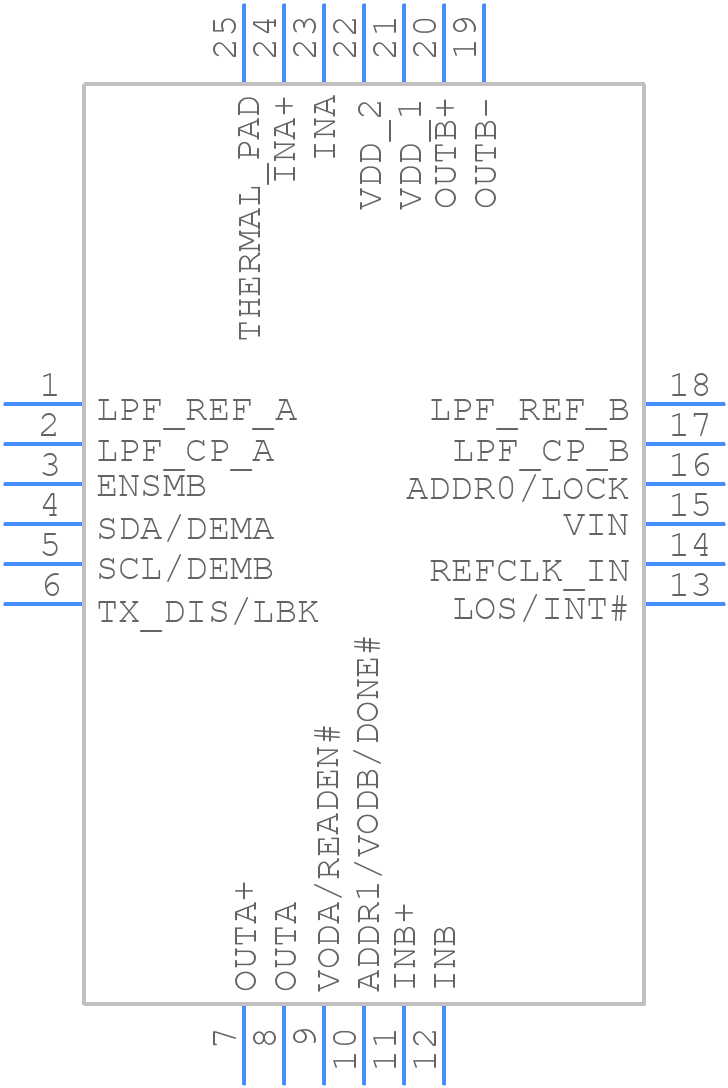

DS110DF111SQE/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DS110DF111SQE/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTW0024A
click to zoom
3D Models
DS110DF111SQE/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - RTW0024A
click to zoom

DS110DF111SQE/NOPB Details

  • Manufacturer Part Number:

    DS110DF111SQE/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATES WITH 3V TO 3.6V

  • Interface IC Type:

    RETIMER

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    2.625 V

  • Supply Voltage-Min:

    2.375 V

  • Supply Voltage-Nom:

    2.5 V

  • Supply Voltage1-Max:

    3.6 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

DS110DF111SQE/NOPB Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital signal traces separate and avoid crossing them over each other.
  • Use a high-quality power supply with low ripple and noise. Decouple the device with 0.1uF and 10uF capacitors between VCC and GND, and place them as close to the device as possible.
  • The maximum clock frequency is 100 MHz, but it's recommended to use a clock frequency of 50 MHz or less to ensure reliable operation and minimize power consumption.
  • Set the LVDS_EN pin high and configure the output format to LVDS through the device's control registers. Ensure that the LVDS receiver is properly terminated and that the transmission line is impedance-matched.
  • The maximum cable length is approximately 10 meters, but it depends on the specific cable characteristics, signal frequency, and system noise. It's recommended to use a high-quality cable with a characteristic impedance of 100 ohms.
