Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors to ensure signal integrity.
To ensure signal integrity, use a differential signal pair for the clock and data lines, keep the traces short and matched, and use a common mode choke or a transformer to isolate the signal from noise.
The maximum cable length supported by the DS125DF111SQE depends on the specific application and the type of cable used. As a general guideline, the datasheet recommends keeping the cable length below 10 meters to ensure signal integrity.
To troubleshoot issues with the DS125DF111SQE, use a logic analyzer or an oscilloscope to verify the signal integrity, check the power supply voltage and decoupling, and ensure that the device is properly configured and terminated.
Yes, the DS125DF111SQE can be used in a multi-point configuration, but it's essential to follow the guidelines in the datasheet for proper termination and signal routing to ensure signal integrity.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS125DF111SQE Overview

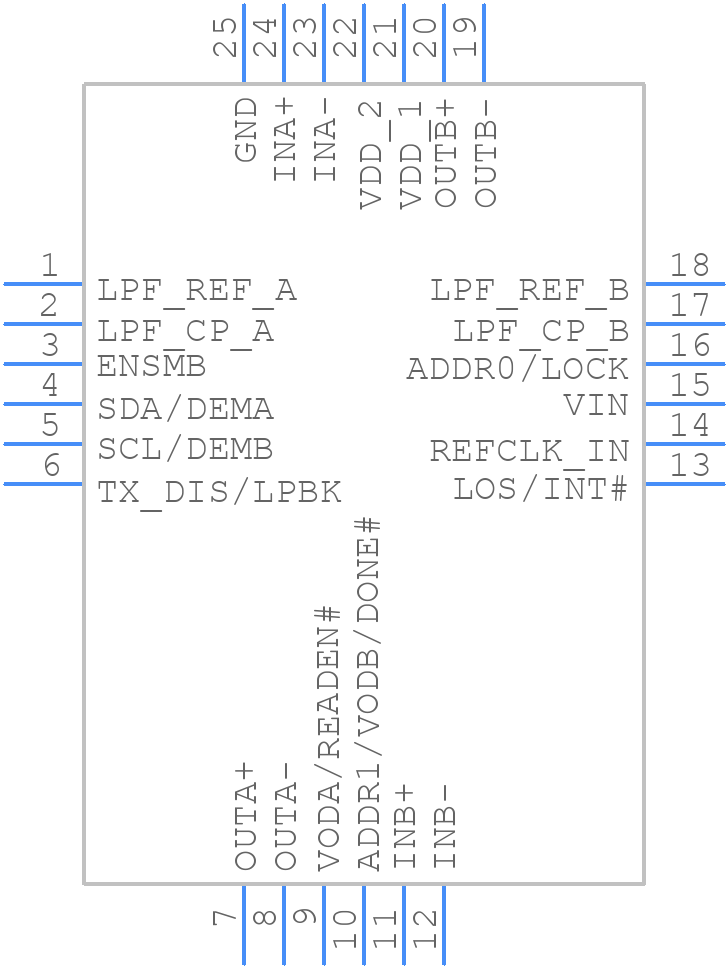

Use the download button to access the DS125DF111SQE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS125,
or try a keyword search, such as Other Interface ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
