DS1489AN - Texas Instruments

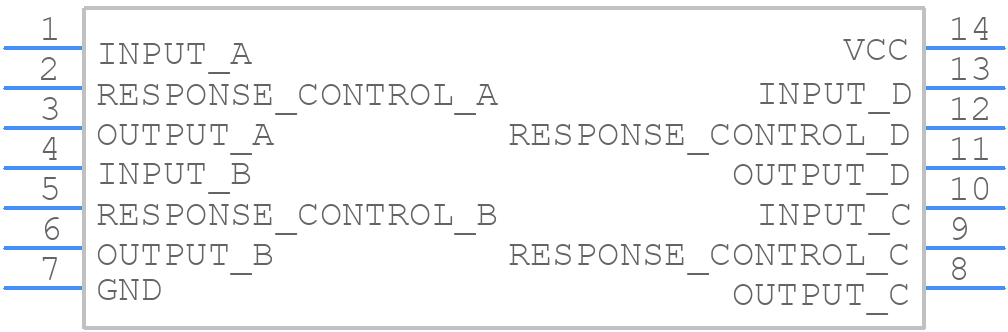

DS1489AN Details

• Manufacturer Part Number:

  DS1489AN

• Rohs Code:

  No

• Part Life Cycle Code:

  Obsolete

• Package Description:

  DIP, DIP14,.3

• Reach Compliance Code:

  Unknown

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Additional Feature:

  RESPONSE CONTROL

• Input Characteristics:

  SCHMITT TRIGGER

• Interface IC Type:

  LINE RECEIVER

• Interface Standard:

  EIA-232-D

• JESD-30 Code:

  R-PDIP-T14

• JESD-609 Code:

  e0

• Length:

  19.18 mm

• Number of Functions:

  4

• Number of Terminals:

  14

• Operating Temperature-Max:

  75 °C

• Output Characteristics:

  TOTEM-POLE

• Output Low Current-Max:

  0.01 A

• Output Polarity:

  INVERTED

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP14,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Receive Delay-Max:

  85 ns

• Receiver Number of Bits:

  4

• Seated Height-Max:

  5.08 mm

• Supply Current-Max:

  26 mA

• Supply Voltage-Max:

  5.05 V

• Supply Voltage-Min:

  4.95 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  BIPOLAR

• Temperature Grade:

  COMMERCIAL EXTENDED

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
