- Part Number DS1489N
- Manufacturer Texas Instruments
- Pin Count 14
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - N14A-ren1
- Released Date Aug 7, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
DS1489N Details
-
Manufacturer Part Number:
DS1489N
-
Rohs Code:
No
-
Part Life Cycle Code:
Obsolete
-
Package Description:
DIP, DIP14,.3
-
Reach Compliance Code:
Unknown
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Additional Feature:
RESPONSE CONTROL
-
Input Characteristics:
SCHMITT TRIGGER
DS1489N Frequently Asked Questions (FAQs)
-
The DS1489N can operate from -40°C to +85°C.
-
To ensure reliable data transmission, ensure that the transmitter and receiver are properly terminated, and the transmission line is properly matched to the characteristic impedance of the DS1489N (typically 100 ohms).
-
The maximum cable length supported by the DS1489N depends on the transmission frequency and the type of cable used. As a general guideline, the maximum cable length is approximately 100 meters at 1 Mbps and 50 meters at 10 Mbps.
-
To handle common-mode noise and EMI, use twisted-pair cables, ensure proper grounding and shielding, and consider using common-mode chokes or filters to reduce noise and EMI.
-
The power consumption of the DS1489N depends on the operating frequency and mode. Typically, the power consumption is around 10-20 mA at 5V supply voltage.
Trust Checks
Community Provided
System Verified
Community Approved
DS1489N Overview

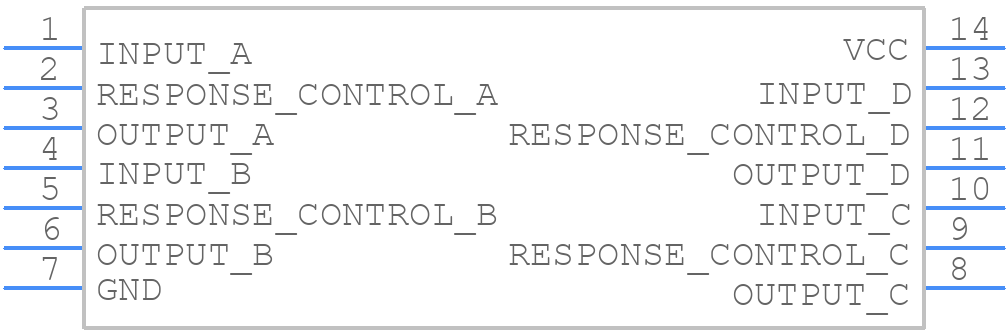

Use the download button to access the DS1489N schematic symbol, PCB footprint, and 3D model.
