DS15BA101SD/NOPB - Texas Instruments

Description: 1.5 Gbps Differential Buffer with Adjustable Output Voltage

Download DS15BA101SD/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

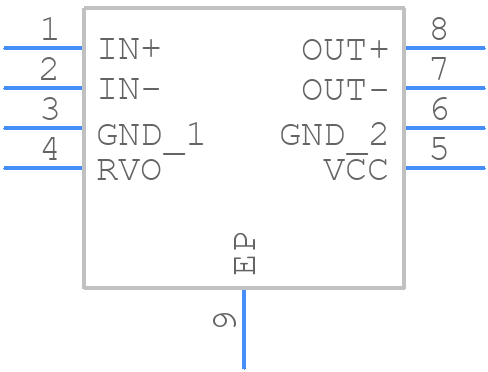

DS15BA101SD/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DS15BA101SD/NOPB - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - NGQ0008A
click to zoom
3D Models
DS15BA101SD/NOPB - Texas Instruments - 3D model - Small Outline No-lead - NGQ0008A
click to zoom

DS15BA101SD/NOPB Details

  • Manufacturer Part Number:

    DS15BA101SD/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    BUFFER

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    49 mA

  • Supply Voltage Limit-Max:

    3.6 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

DS15BA101SD/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the DS15BA101SD involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The DS15BA101SD requires a single 3.3V power supply. Ensure that the power supply is clean and well-regulated. Decouple the device with a 0.1uF ceramic capacitor and a 10uF tantalum capacitor in parallel, placed close to the device.
  • The DS15BA101SD supports cable lengths up to 100 meters at 1 Gbps and up to 40 meters at 10 Gbps, depending on the cable quality and the specific application.
  • To troubleshoot issues with the DS15BA101SD, check the power supply, decoupling, and PCB layout. Verify that the device is properly configured and that the input signals are within the specified range. Use an oscilloscope to check the signal integrity and eye diagrams.
  • Yes, the DS15BA101SD is compatible with other Texas Instruments devices, such as the TLK10002 and the TLK10004. However, ensure that the devices are properly configured and that the signal integrity is maintained.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DS15BA101SD/NOPB Overview

Use the download button to access the DS15BA101SD/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS15B, or try a keyword search, such as Line Driver or Receivers
