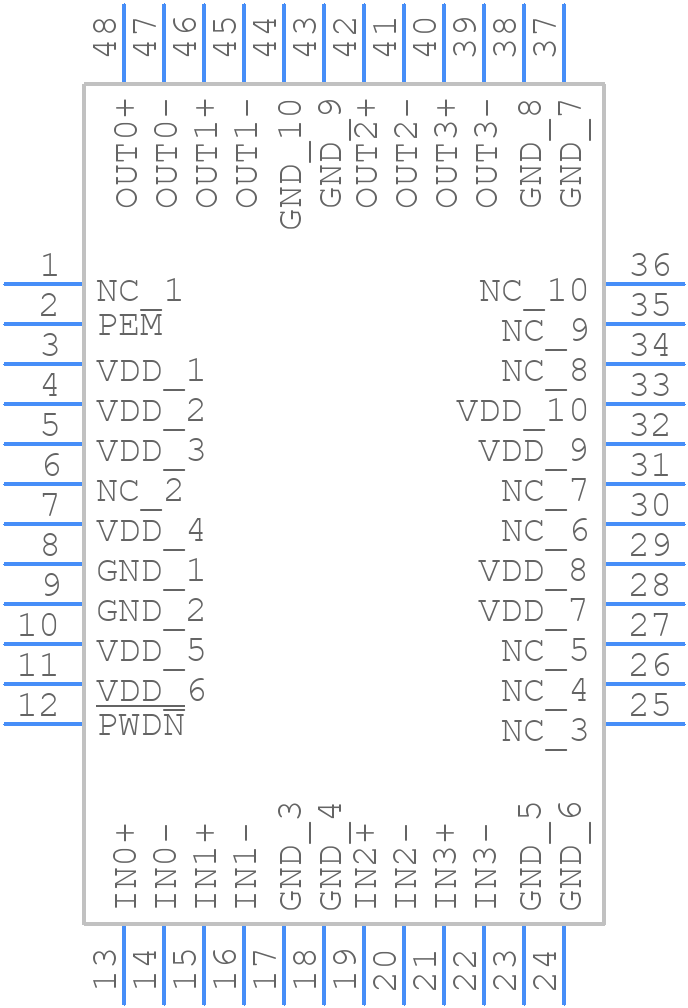

DS15BR400TVS - Texas Instruments

DS15BR400TVS Details

• Manufacturer Part Number:

  DS15BR400TVS

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  QFP

• Package Description:

  TQFP-48

• Pin Count:

  48

• ECCN Code:

  5A991.B.1

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Differential Output:

  YES

• Driver Number of Bits:

  4

• High Level Input Current-Max:

  0.00001 A

• Input Characteristics:

  DIFFERENTIAL SCHMITT TRIGGER

• Interface IC Type:

  LINE TRANSCEIVER

• Interface Standard:

  GENERAL PURPOSE

• JESD-30 Code:

  S-PQFP-G48

• JESD-609 Code:

  e0

• Length:

  7 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  4

• Number of Terminals:

  48

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Out Swing-Min:

  2 V

• Output Characteristics:

  DIFFERENTIAL

• Output Polarity:

  COMPLEMENTARY

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TFQFP

• Package Equivalence Code:

  TQFP48,.35SQ

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, THIN PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Receive Delay-Max:

  2 ns

• Receiver Number of Bits:

  4

• Seated Height-Max:

  1.2 mm

• Supply Current-Max:

  215 mA

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  3.3 V

• Supply Voltage1-Max:

  3.6 V

• Supply Voltage1-Min:

  3 V

• Supply Voltage1-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Transmit Delay-Max:

  2 ns

• Width:

  7 mm
